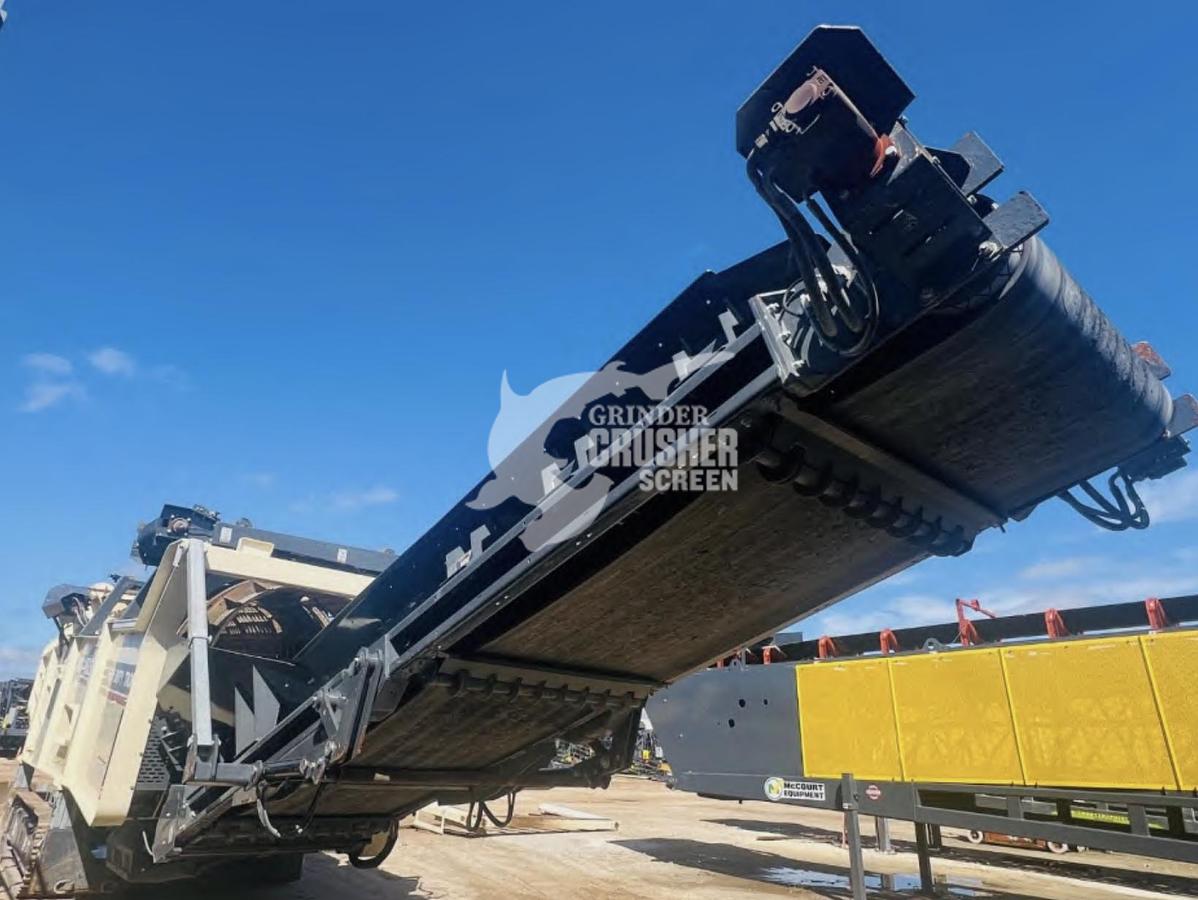

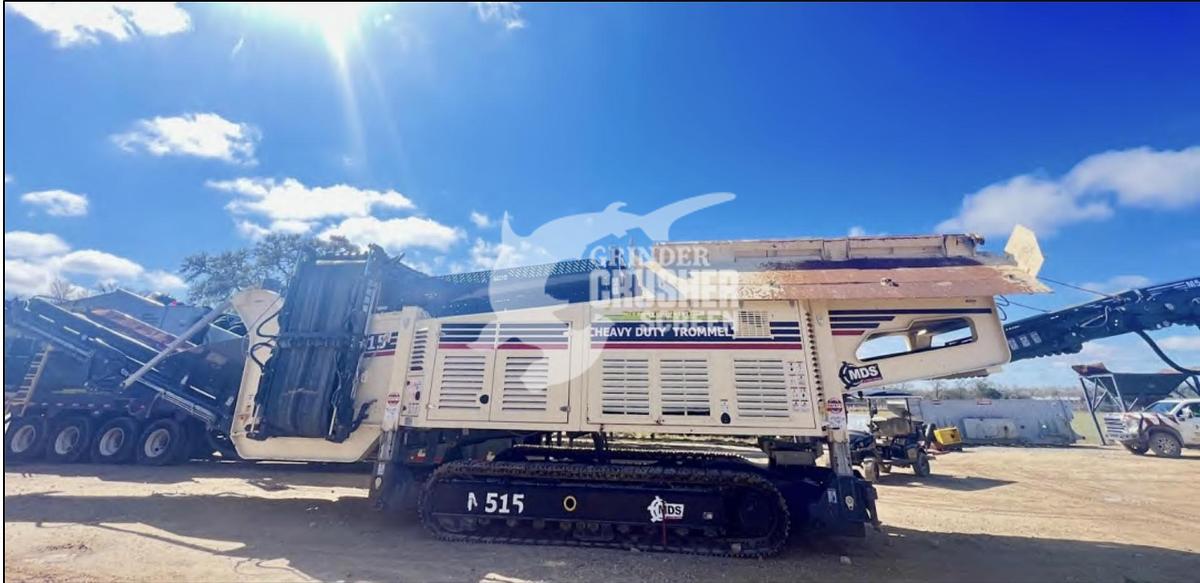

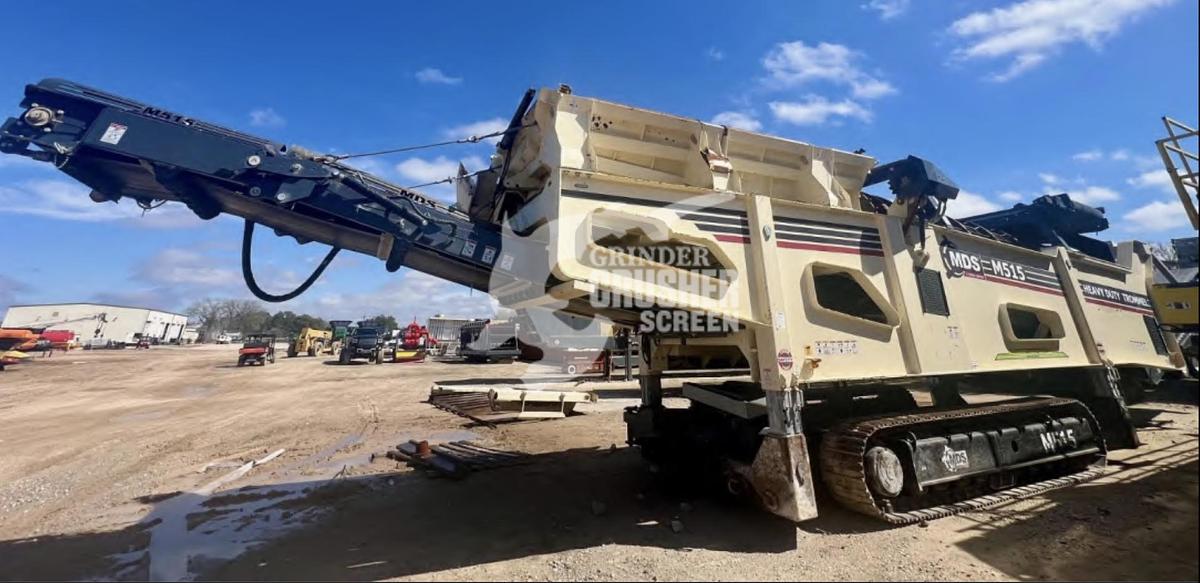

2023 MDS M515

A new CAT engine with only 9 hours is the standout feature on this 2023 MDS M515. It also includes a 1,000-hour engine warranty.

Who This Machine Is For

• Quarry operators — separate large rock while removing dirt and smaller material.
• Rip-rap producers — create multiple product sizes in one screening pass.
• Aggregate operations — process limestone, blasted rock, and quarry overburden.
• Recycling contractors — screen compatible concrete and demolition material.
• Mobile screening crews — use the tracked undercarriage to reposition around the jobsite.

Compare this unit with our other trommel screens, or review our trommel screen guide.

What It Screens

• Rip-rap and armour rock — separates large stone for erosion-control applications.
• Quarry overburden — removes soil and smaller material from usable rock.
• Sticky or dirty clay — the rotating drum helps break material apart during screening.
• Limestone and blasted rock — produces separate material streams based on screen openings.

Specs in Plain Language

The replacement CAT C3.6 engine has only 9 hours and produces 131.4 horsepower, or 100 kW. It meets Tier 4 Final and Stage V emissions standards.

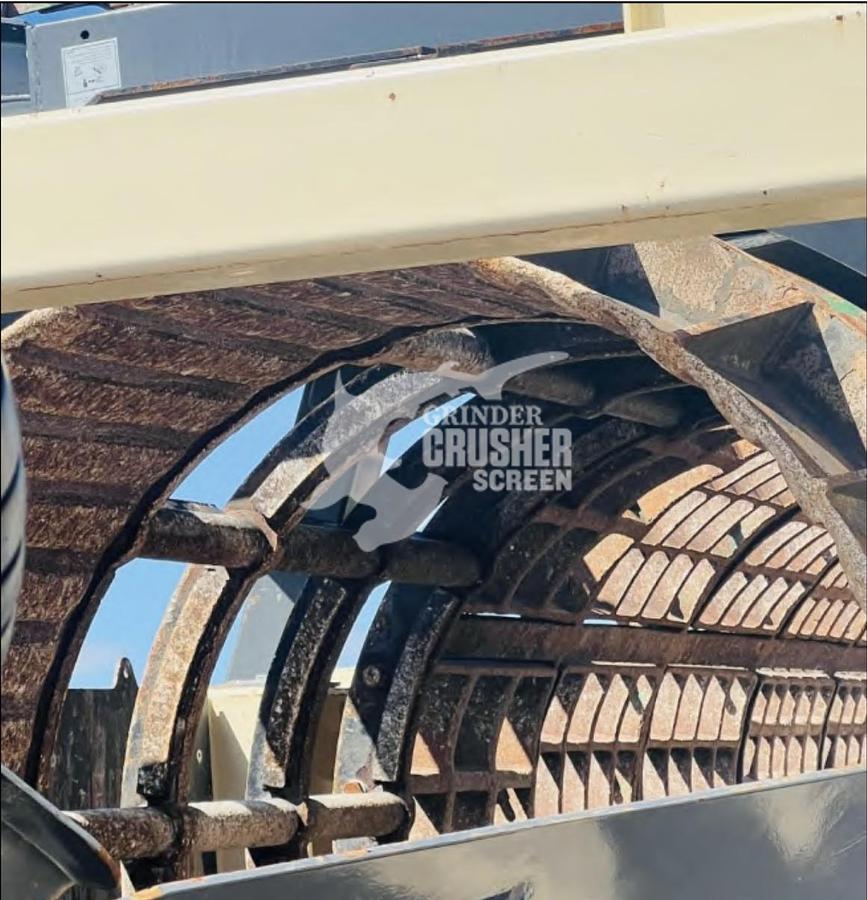

The heavy-duty drum measures 18 feet long with a 4-foot-11-inch internal diameter. Its installed 4-inch and 8-inch screens create three product streams: fines, mid-size material, and oversize. The 16.5-cubic-yard hopper and hydraulic push feeder control how material enters the drum.

The M515 is rated for up to 550 US tons per hour. Actual production depends on material size, moisture, contamination, screen openings, and loading consistency. Screen size 4" + 8".

Why Buy From GrinderCrusherScreen

We've been in the trommel screen business since 1973. We know these machines because we work in this industry every day. We can answer your questions about the MDS M515 before you buy, and we help with financing and arranging transportation.

Got a trommel screen you need to sell? We handle the marketing, the calls, the tire kickers, and the transaction. It's free. You set your price, you get your price.

Call 770-433-2670 or email Sales@grindercrusherscreen.com for pricing and details.
