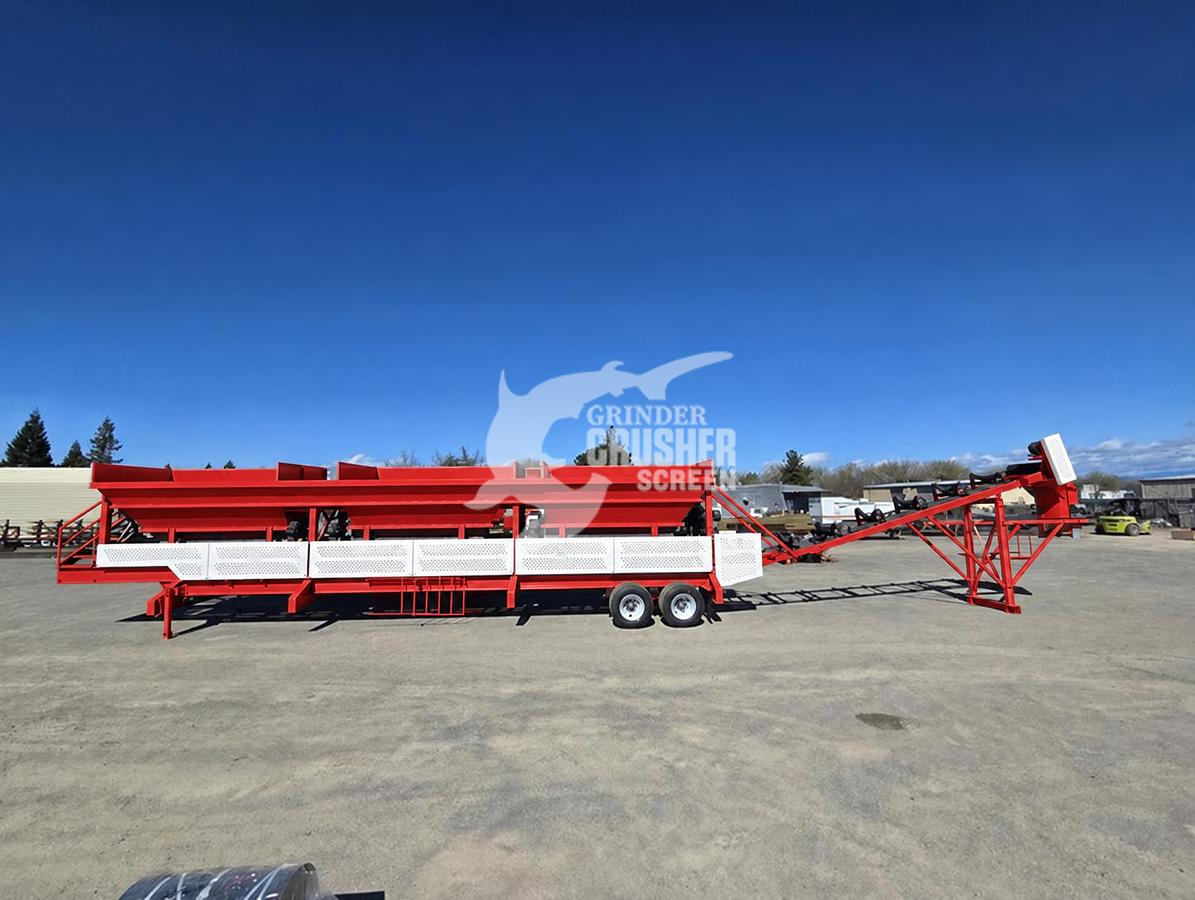

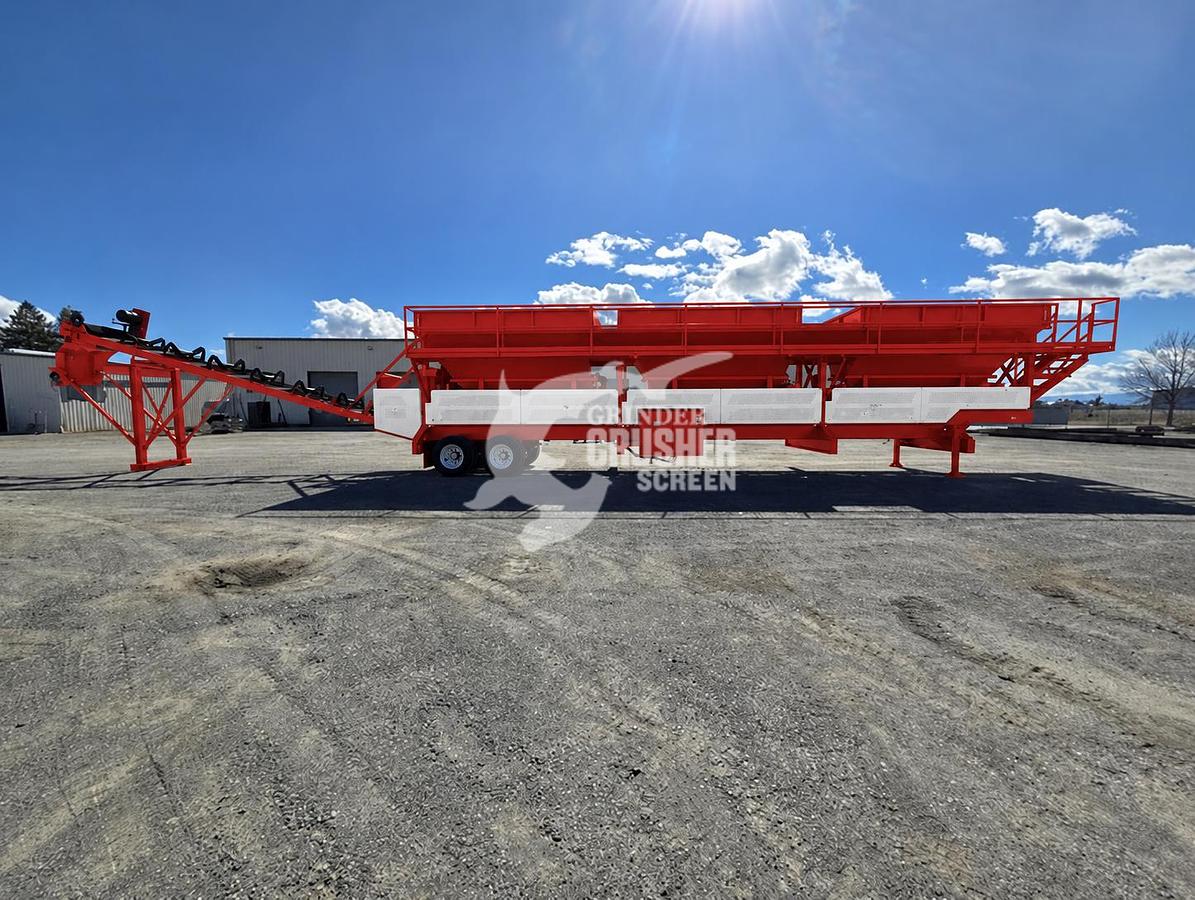

NEW SCREEN USA 3 BIN BLENDER

New portable 3-bin blender for sand and organic materials. Includes two sand feeders, one organics feeder with an agitator, a collecting conveyor, and a vertical mixer.

POWER

• Electric: Three 7.5 HP feeder motors, one 15 HP collecting conveyor motor, one 15 HP agitator motor, and one 10 HP vertical mixer motor.

• Nord gearboxes on the feeders and collecting conveyor.

HOPPERS

• Two sand bins and one organics bin.

• Each opening measures 7′-2″ wide × 14′ long.

• Reinforced ¼″ steel construction.

• 1′-6″ wing extensions on three sides of each hopper.

• Tapered bottoms help reduce material bridging.

• Adjustable discharge gates control material flow.

• Adjustable rubber skirt seals help prevent leakage.

SAND BELT FEEDERS

• Two 30″ wide × 13′-4″ long feeders.

• Individual variable-speed controls.

• 3-ply vulcanized endless belts with scrapers.

• Belt-speed setup: 67 ft/min.

ORGANICS BELT FEEDER

• 36″ wide × 13′-4″ long.

• Variable-speed control.

• 3-ply vulcanized endless belt with 2″ cleats.

• Belt-speed setup: 67 ft/min.

ORGANICS AGITATOR

• Installed inside the organics hopper.

• 15 HP electric motor with Dodge speed reducer.

• Speed setup: 60 RPM.

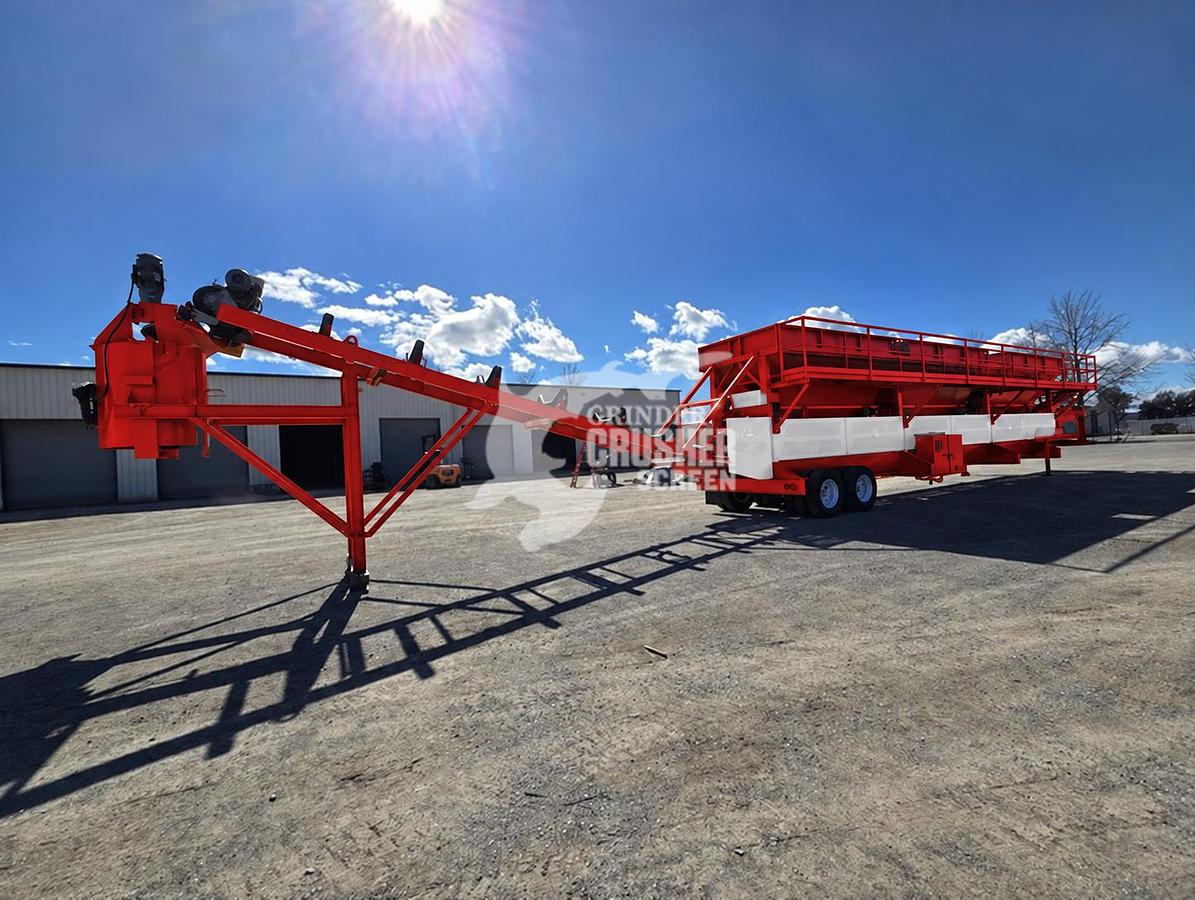

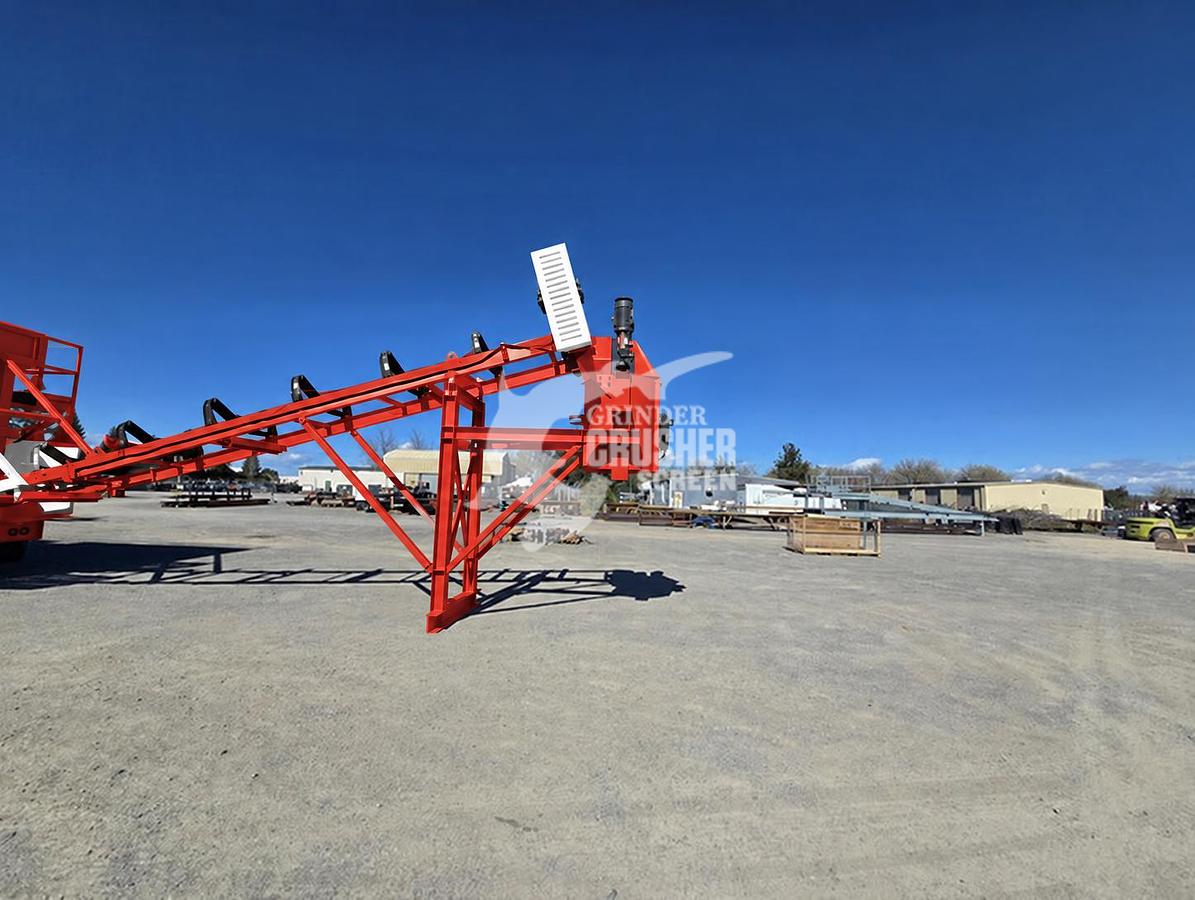

COLLECTING CONVEYOR

• 36″ wide × 71′ long.

• 2-ply conveyor belt with scraper.

• Belt-speed setup: 330 ft/min.

• Final 23′ section must be unbolted and removed for transport.

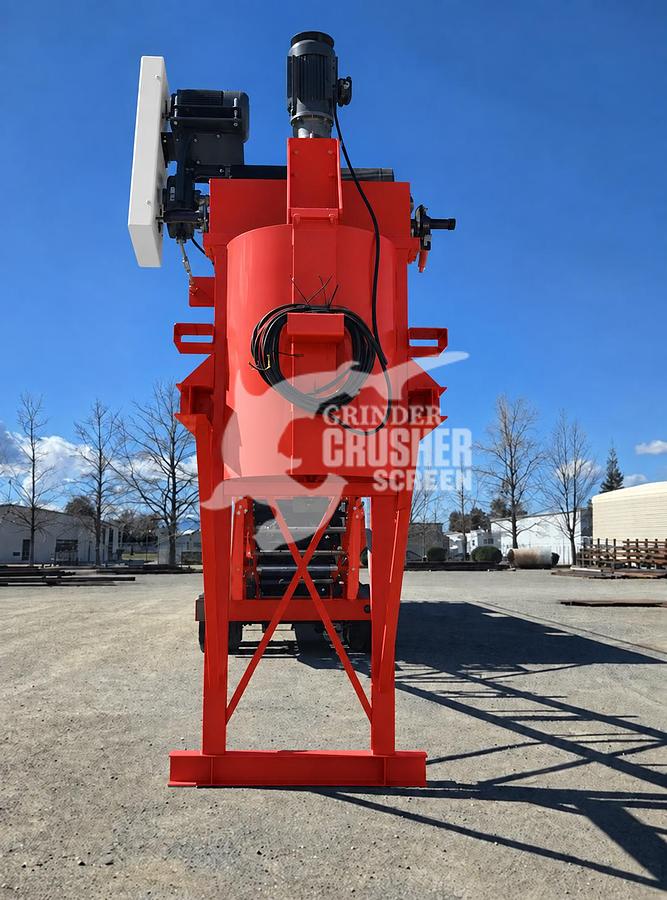

VERTICAL MIXER

• 3′ diameter × 4′ tall.

• 10 HP electric motor with variable-speed control.

• Four rows of ½″ AR400 mixing blades.

• Support structure with skid base.

FRAME

• Heavy-duty steel frame with cross bracing.

• Tandem-axle trailer with dual tires and air brakes.

• Kingpin and hand-crank landing legs.

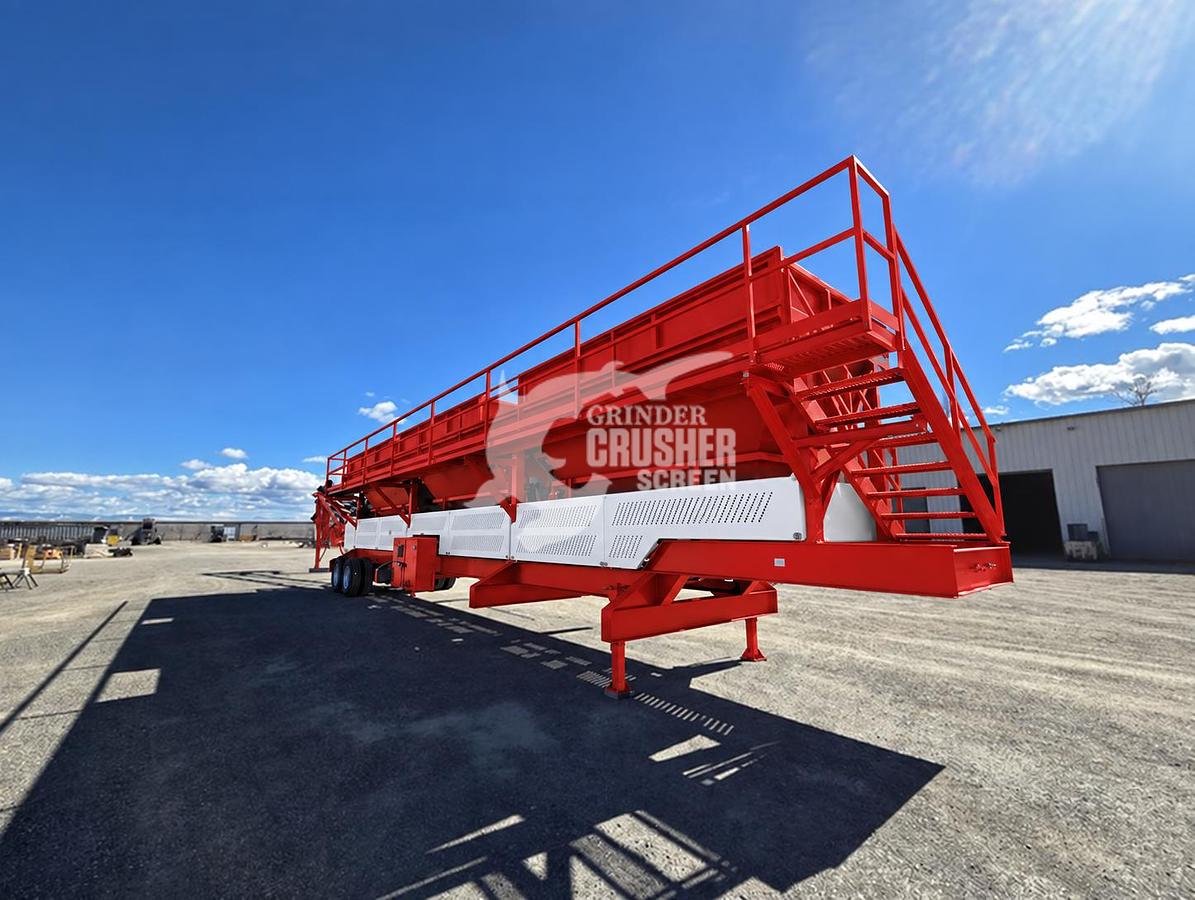

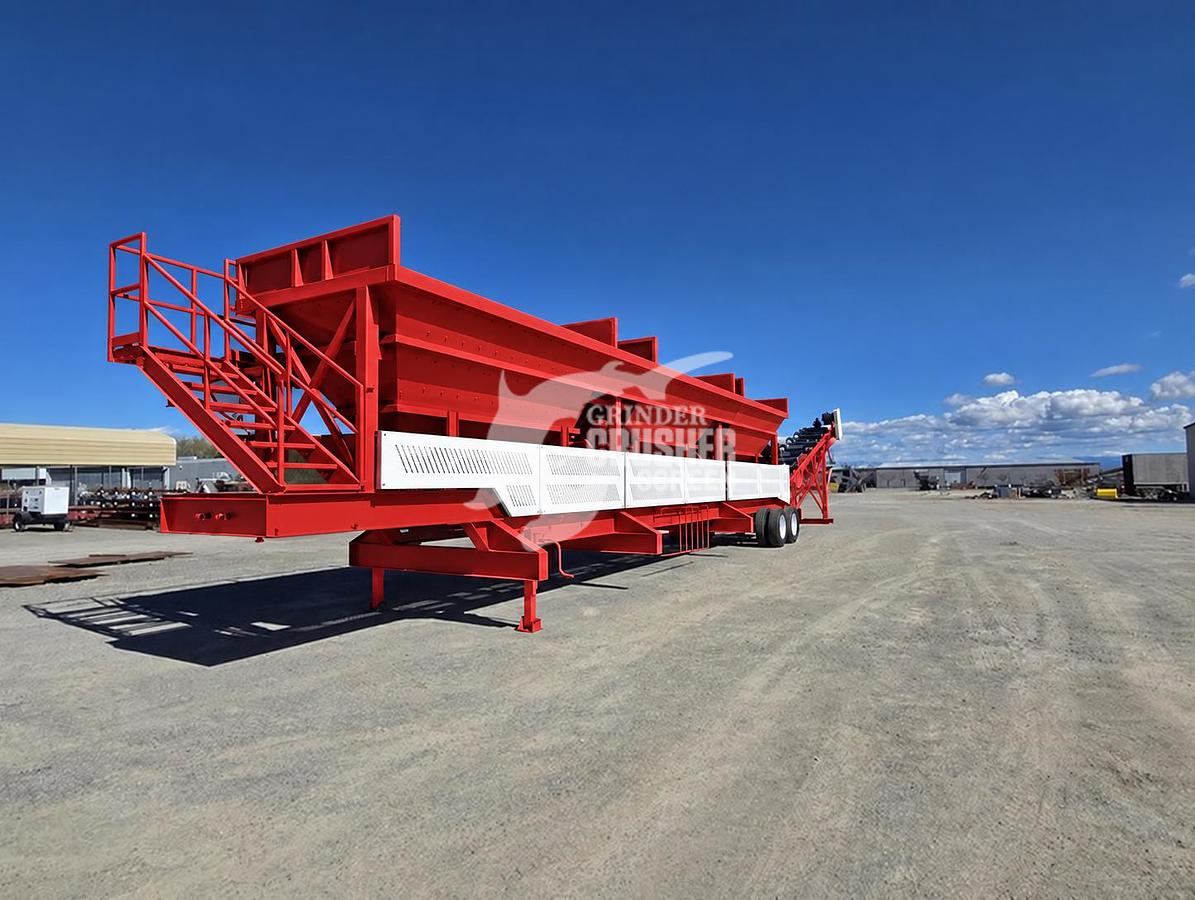

• Bolt-on walkway with handrails and access ladders.

OTHER

• Pre-wired electrical controls in a trailer-mounted NEMA 4 enclosure.

• Main disconnect.

• Variable-speed drives for each feeder and the mixer.

• Fixed-speed starters for the collecting conveyor and agitator.
