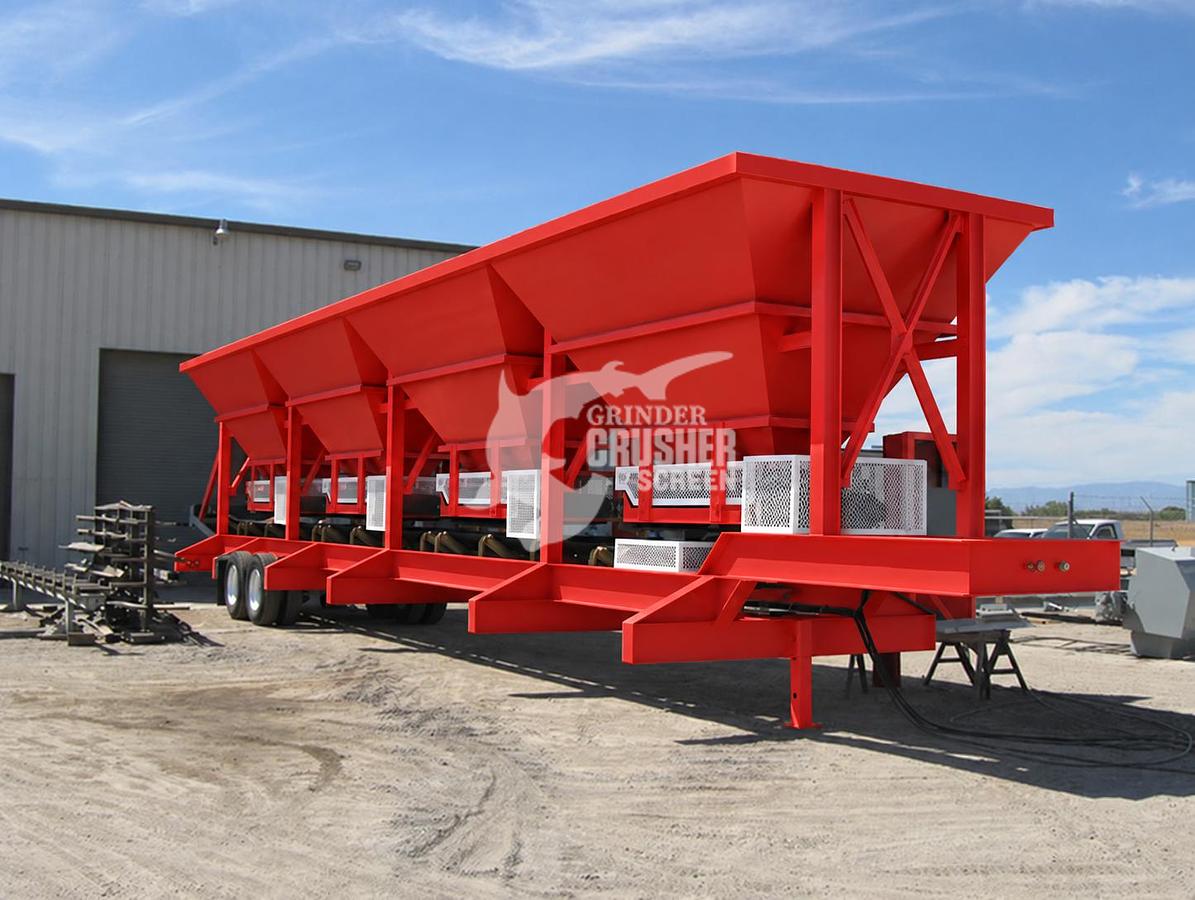

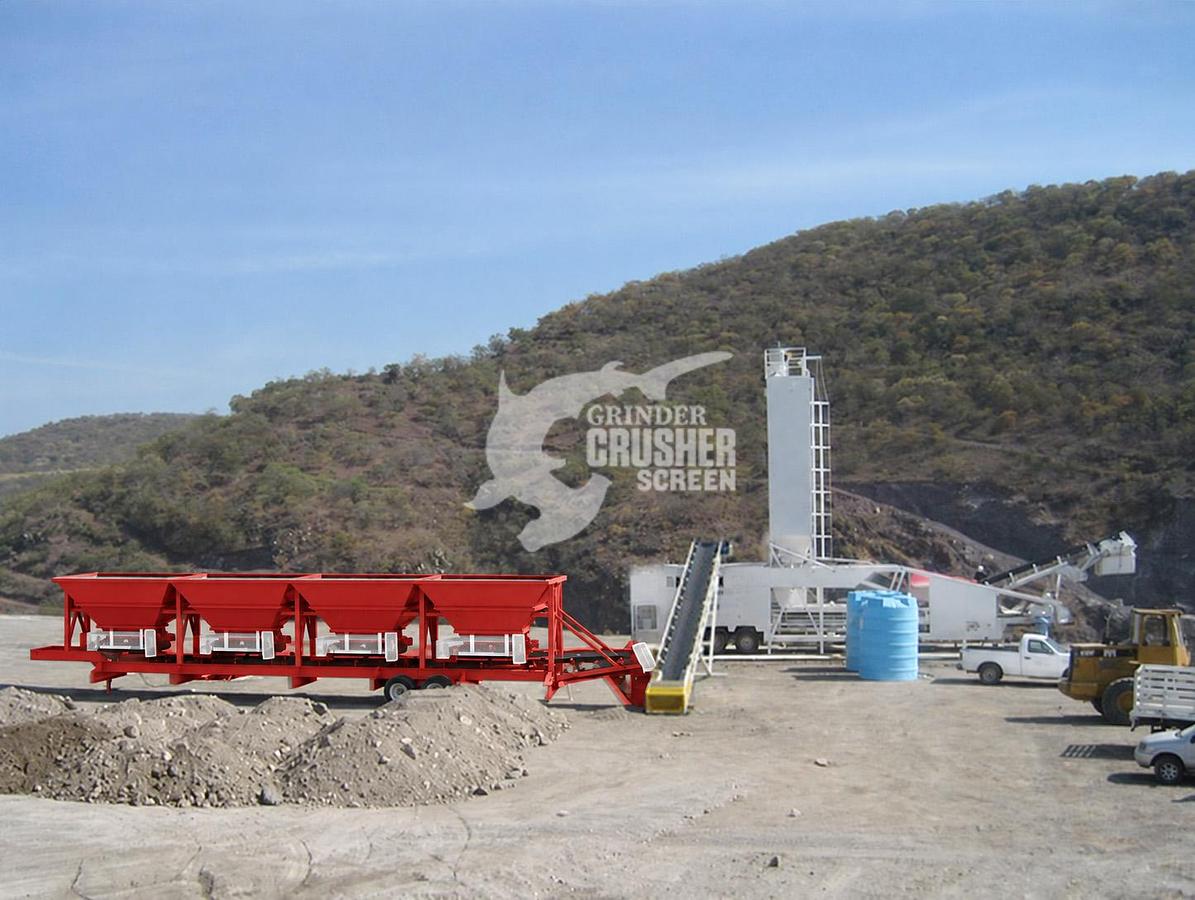

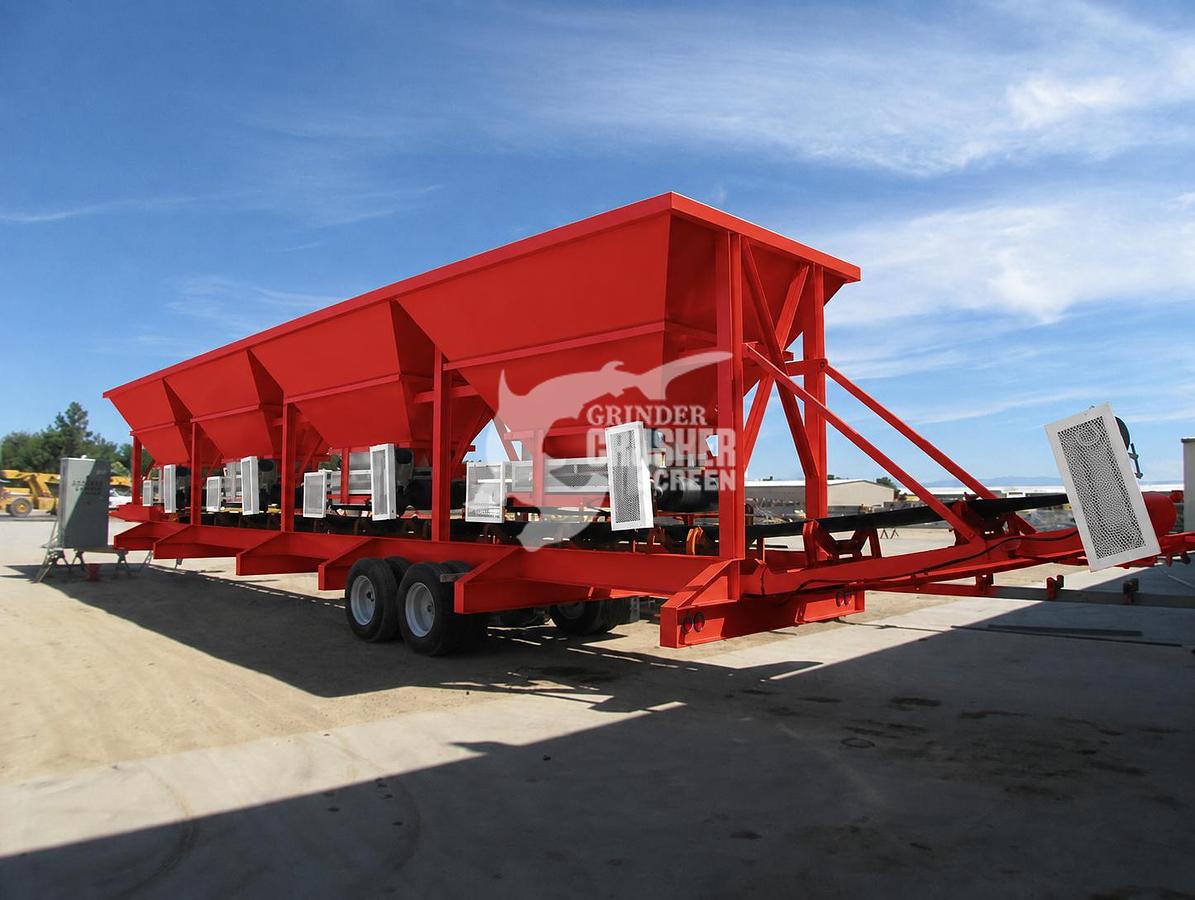

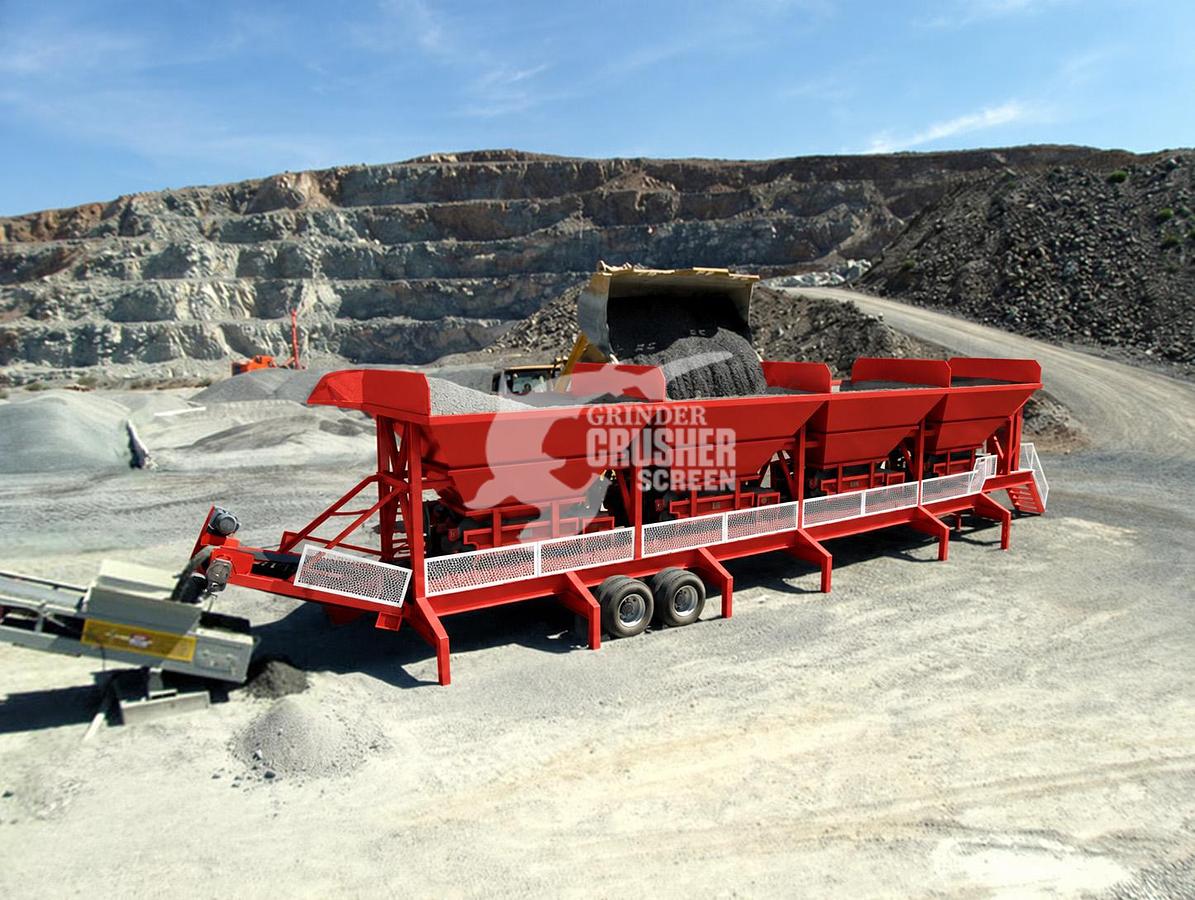

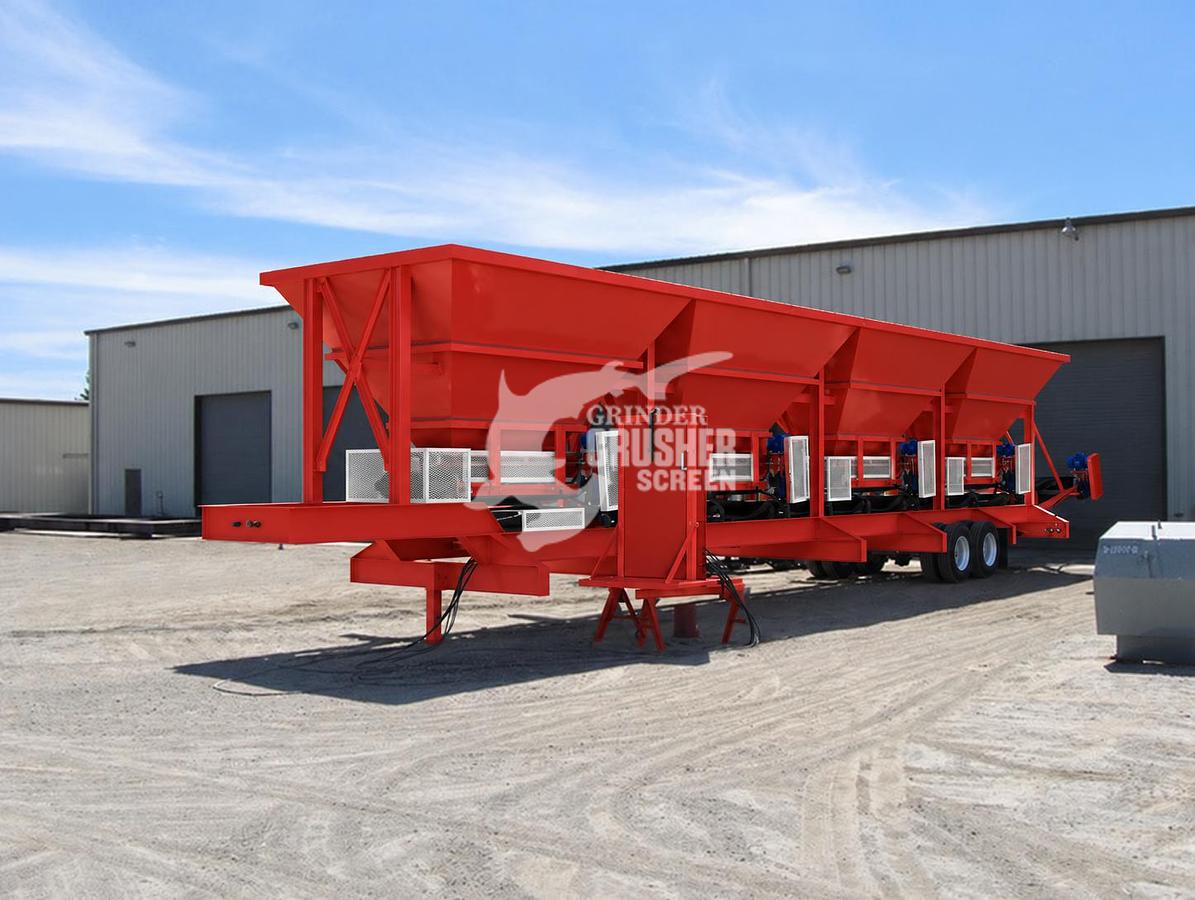

NEW SCREEN USA 4 BIN HOPPER FEEDER

New portable 4-bin hopper feeder with separate belt feeders and a shared collecting conveyor.

POWER

• Electric: Four 5 HP feeder motors and one 15 HP collecting conveyor motor.

• Dodge shaft-mounted speed reducers and V-belt drives.

HOPPERS

• Four hoppers with 15 cu.yd (20 tons each)

• Each opening measures 9′-6″ wide × 14′ long.

• Reinforced ¼″ steel construction.

• Tapered bottoms help reduce material bridging.

• Hand-crank discharge gates control material flow.

• Adjustable rubber skirt seals help prevent leakage.

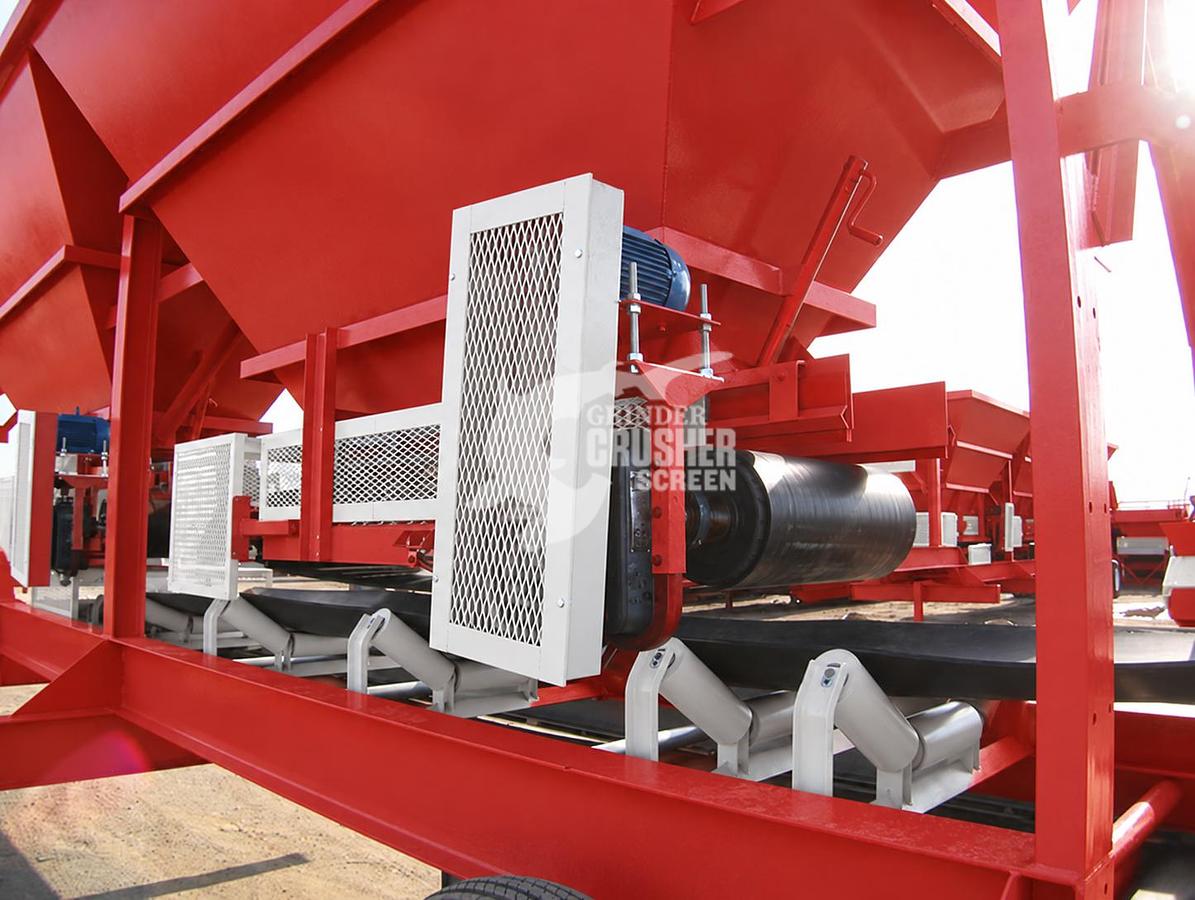

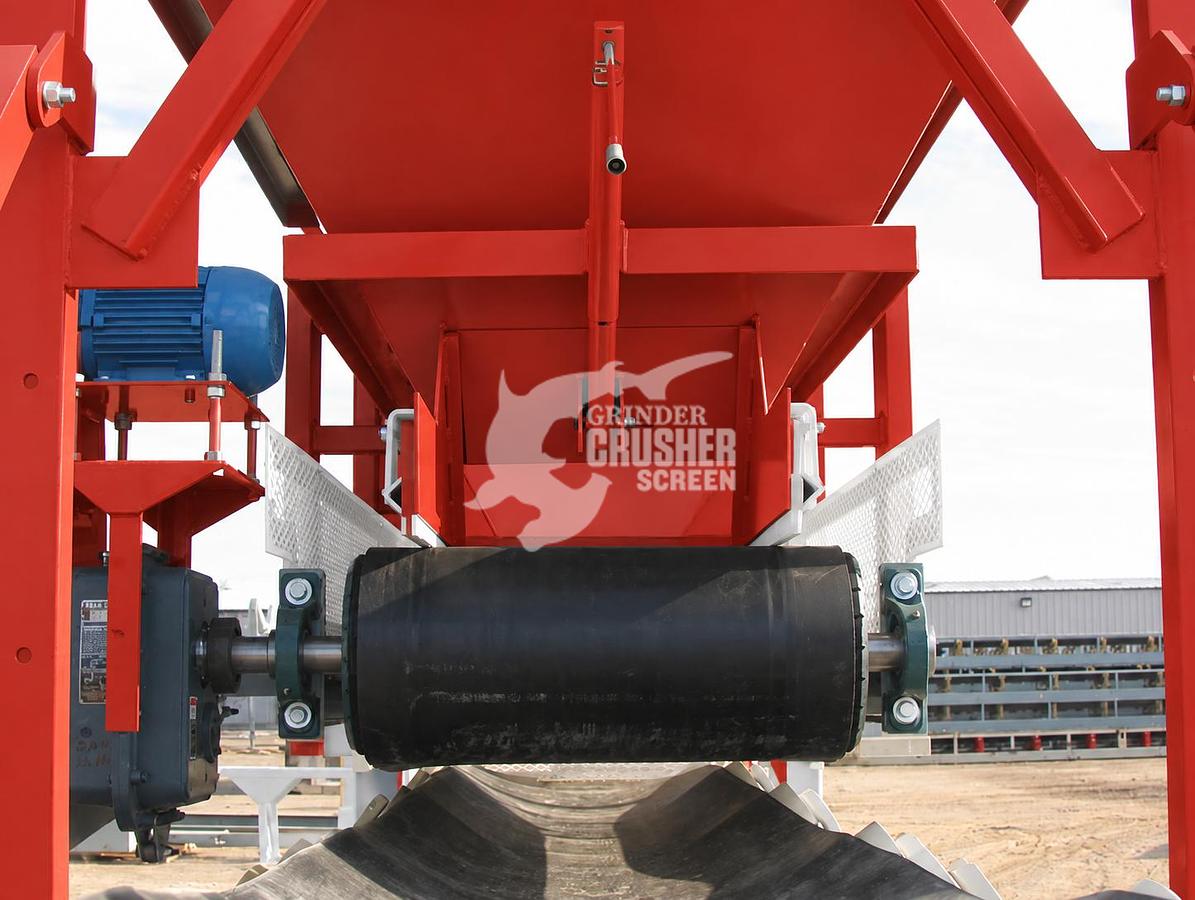

BELT FEEDERS

• Four 30″ wide × 8′ long feeders.

• 3-ply vulcanized endless belts.

• Belt-speed setup: 90 ft/min.

COLLECTING CONVEYOR

• 36″ wide.

• 2-ply conveyor belt.

• 9′-6″ discharge extension beyond the hoppers.

• Fixed-speed drive.

FRAME

• Heavy-duty steel frame with cross bracing.

• Tandem-axle trailer with dual tires and air brakes.

• Kingpin, rear lighting, mud flaps, and blocking pads.

OTHER

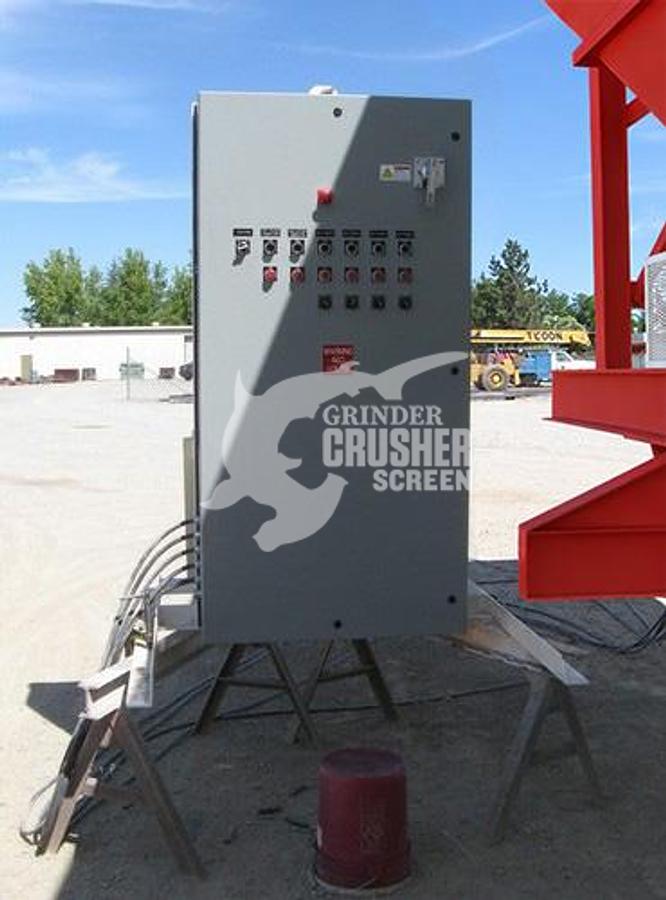

• Pre-wired electrical control panel.

• AC Tech SMV variable-speed drives for the belt feeders.

• Main disconnect and branch-circuit protection.
