NEW SCREEN USA TRACK MOUNTED CONVEYOR TC5036
$77,900 (USD)
Description

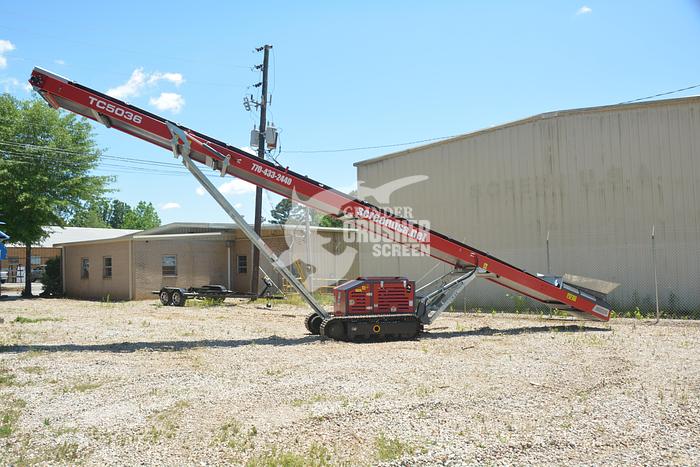

50' x 36" Track mounted, folding conveyor.
FRAME
- Deep folded plate frame constructed with heavy duty cross bracing for strength and stability
- Hydraulic folding head section
IDLERS
- CEMA C standard idlers
UNDERCARRIAGE
- 8' tracks with 16" shoes
- Umbilical cord remote control
- Hydraulic raise and lower
- Galvanized trestle with variable feed and discharge heights
FEEDBOOT
- 5-1/2' long with adjustable rubber skirting

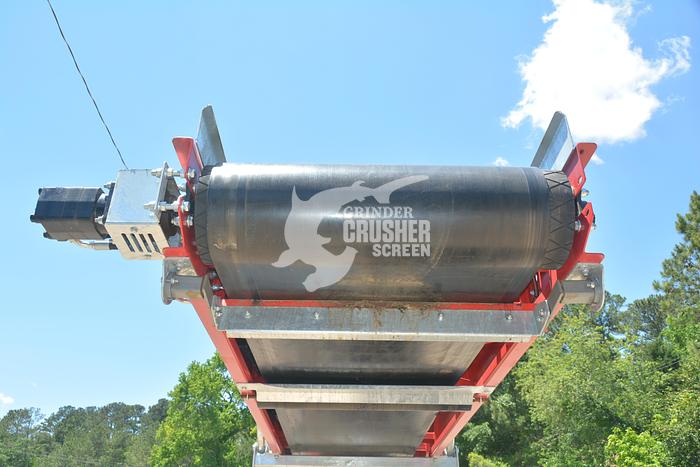

BELT
- 36" wide
- 2-Ply equivalent (European style)
- Vulcanized
- Chevron belt (Optional)
- Self adjusting polyurethane belt cleaner
OTHER
- Remote greasing to all bearing from ground level
- Can ship in a 40' container (High Cube)
- Max dishcarge height of 18'-7"
- Max stockpiling capacity of 424 cu.yd
- Weight 23,148 lbs
HB HPR000LIAM
Specifications
| Stock Number | GCS211703-1 |
| Hours | 0 |
| Engine | 24HP Perkins 403J Tier 4 Final diesel |
| Length | 38'-3" (Transport) |
| Width | 7'-6" |
| Height | 8'-3" (Transport) |
| Height (Working) | 18'-7" |
| Length (Working) | 50'-0" |
| Max stockpiling capacity | 424 cu.yd |
| Weight | 23,148 lbs |
