What GPM does a skid steer screening bucket need?

Most skid steer screening buckets require 15 to 30 GPM of auxiliary hydraulic flow. Standard-flow skid steers typically produce 15 to 22 GPM, which is adequate for many screening buckets. High-flow buckets that require 25+ GPM need a high-flow skid steer or a hydraulic upgrade. Always check the bucket manufacturer's specifications against your machine's auxiliary flow rating before purchasing.

Can I use a screening bucket on a Bobcat?

Yes. Most screening buckets use a universal skid steer quick-attach plate that fits Bobcat and other major skid steer brands. The key factor is not the brand of skid steer but the machine's auxiliary hydraulic flow and lift capacity. Check your specific Bobcat model's specs to make sure the screening bucket you are considering is compatible.

How many yards per hour can a skid steer screening bucket process?

Typical throughput ranges from 10 to 25 cubic yards per hour, depending on material type, moisture content, screen opening size, and operator technique. Dry, free-flowing topsoil screens at the higher end of that range. Wet or clay-heavy material drops production significantly.

Is a screening bucket worth it for a small landscaping business?

For many small landscaping operations, a skid steer screening bucket is one of the best equipment investments available. If you already own a skid steer, you add screening capability for $6,000 to $20,000 instead of $50,000+ for a standalone screener. The screened product sells for $15 to $25 more per cubic yard than raw material, so the bucket can pay for itself within a few months of regular use.

What is the difference between a vibrating screening bucket and a rotary screening bucket?

A vibrating screening bucket uses a hydraulic motor to shake a flat mesh screen. Material falls through the mesh openings as it vibrates. This design is simpler, less expensive, and works well with dry, free-flowing material. A rotary screening bucket uses rotating drums, blades, or star discs to tumble and separate material. Rotary designs handle wet, sticky, and clay-heavy material much better because the rotation is self-cleaning. Rotary buckets cost more but offer greater versatility.

When should I upgrade from a screening bucket to a standalone screener?

When your screening volume consistently exceeds 20 to 25 cubic yards per hour, or when you find yourself screening for more than half of your working day, a standalone screener will improve your productivity and product quality. Screening buckets top out at roughly 150 to 200 cubic yards per full working day. A small shaker screen or trommel can double or triple that output with one operator.

Used 2023 IROCK MT8036 for Sale at Grinder Crusher Screen

Name: 2023 IROCK MT8036
Brand: IROCK
SKU: KS260906-9
Price: 122500.0 USD
Availability: InStock

2023 IROCK MT8036

Call 770-433-2670

Description

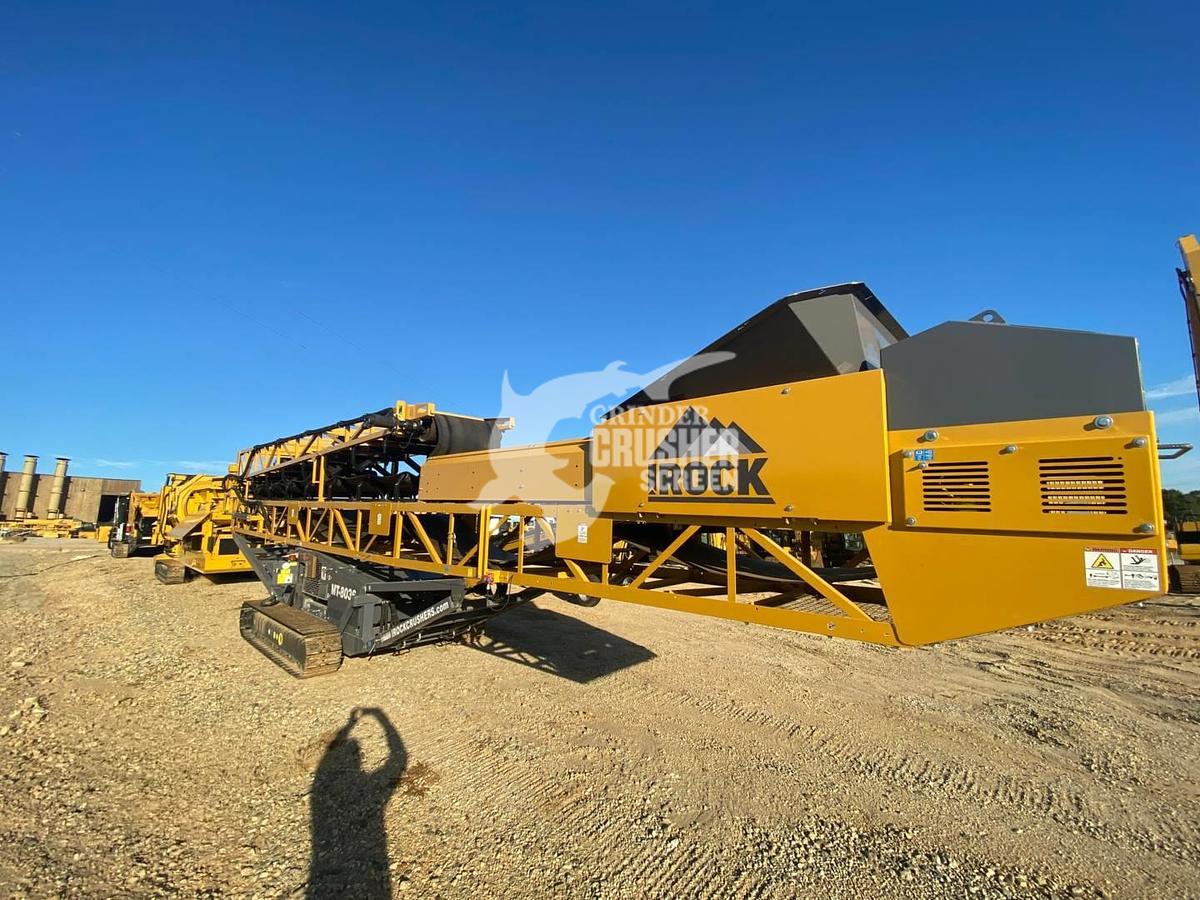

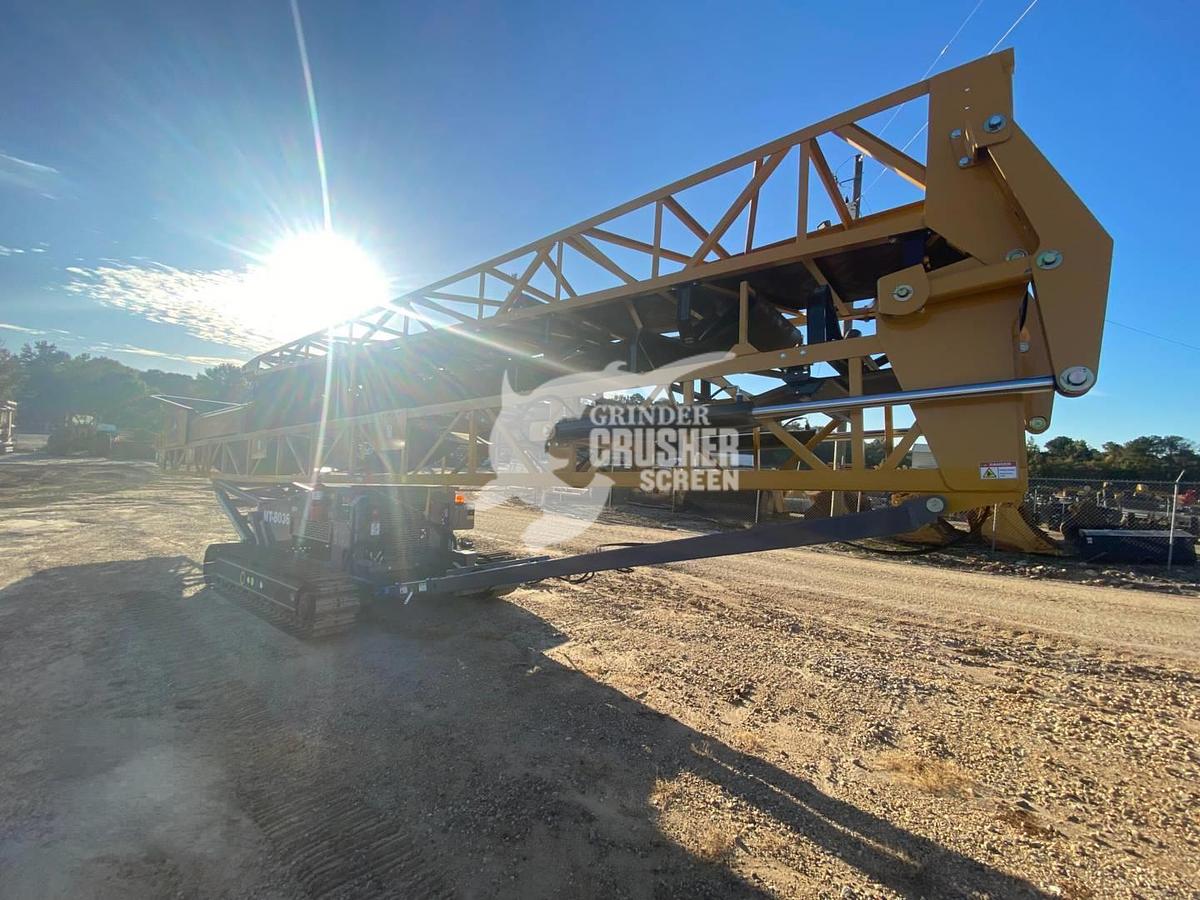

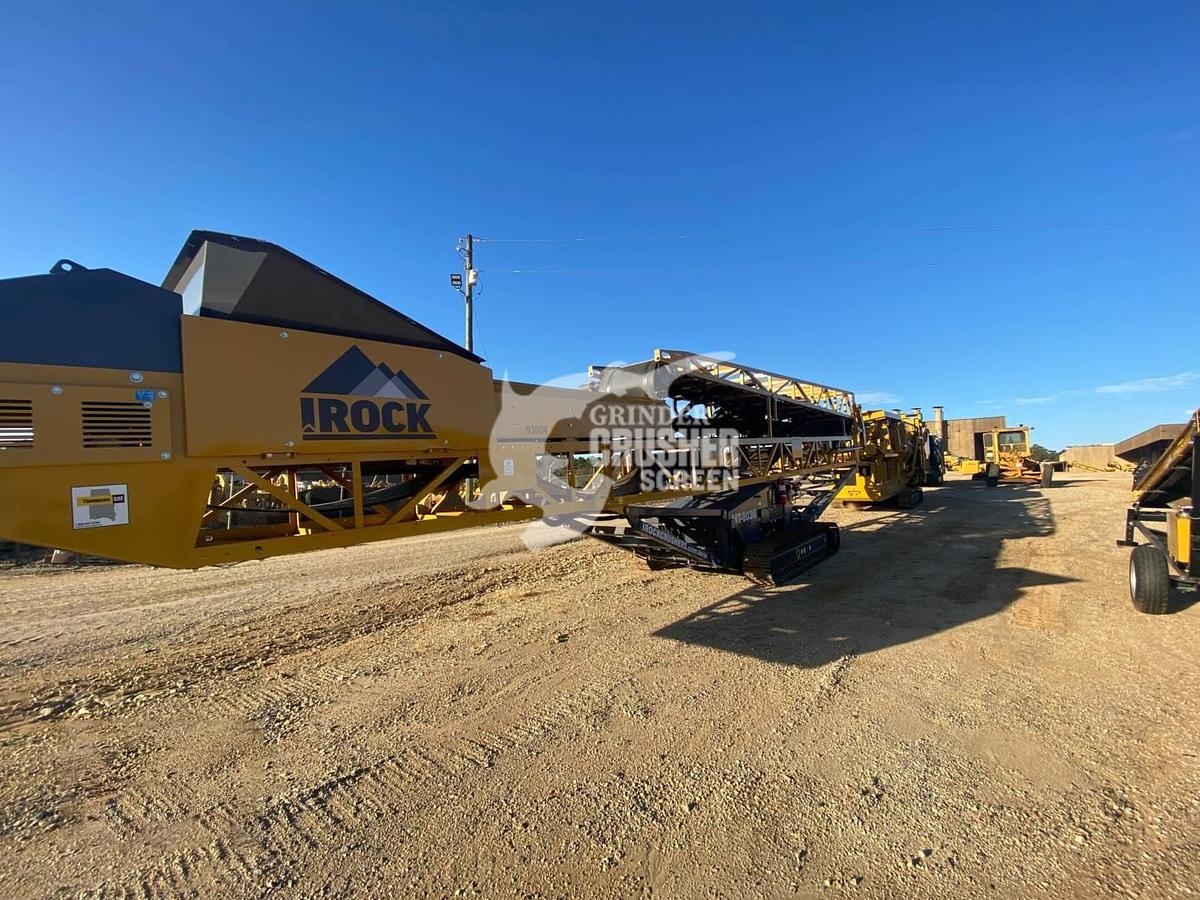

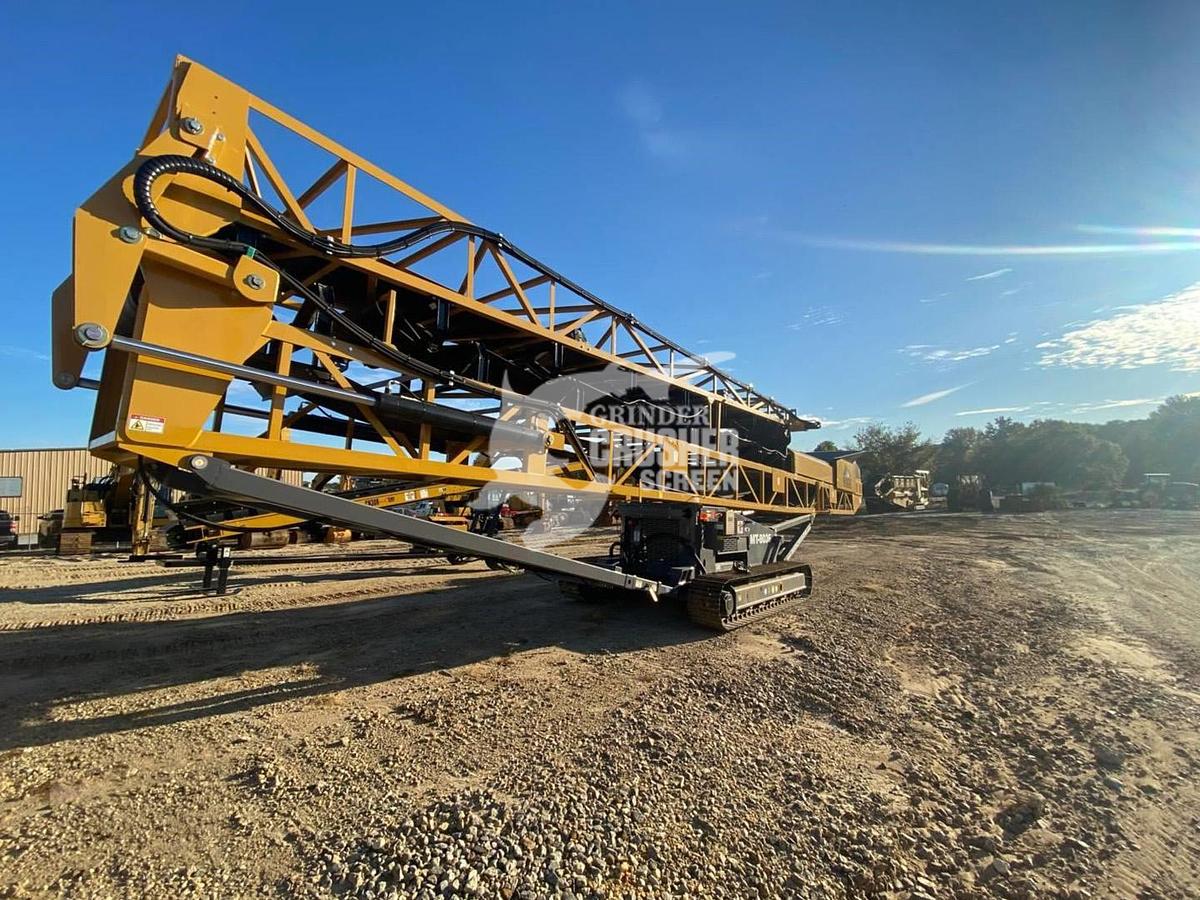

80' x 36" IROCK MT8036 track mounted stacking conveyor.

Engine

49HP CAT C2.2

Conveyor

80' long conveyor

36" width belt

3-ply belt

Hydraulic top fold

Hydraulic raise and lower

Maximum conveyor angle of 22.5°

Undercarriage

Heavy duty tracks

Remote maneuverability system

Hopper

Large feed hopper

Frame

Durable truss frame construction

Dimensions

Transport length 51'-4"

Transport height 13'-2"

Transport width 8'-5"

Maximum stockpile height 31'-1"

Capacity

Production capacity 500TPH

Specifications

Stock Number	KS260906-9
Hours	764
Engine Hours	764
Engine	49HP CAT C2.2
Stockpile Height	31'-0"
Length	80'-0"
Belt Width	36"
Width (Transport)	8'-5"
Length (Transport)	51'-4"
Height (Transport)	13'-2"
Weight	25,050 lbs

Documents

irock-conveyors.pdf

2023 IROCK MT8036

2023 IROCK MT8036

$122,500 (USD)
