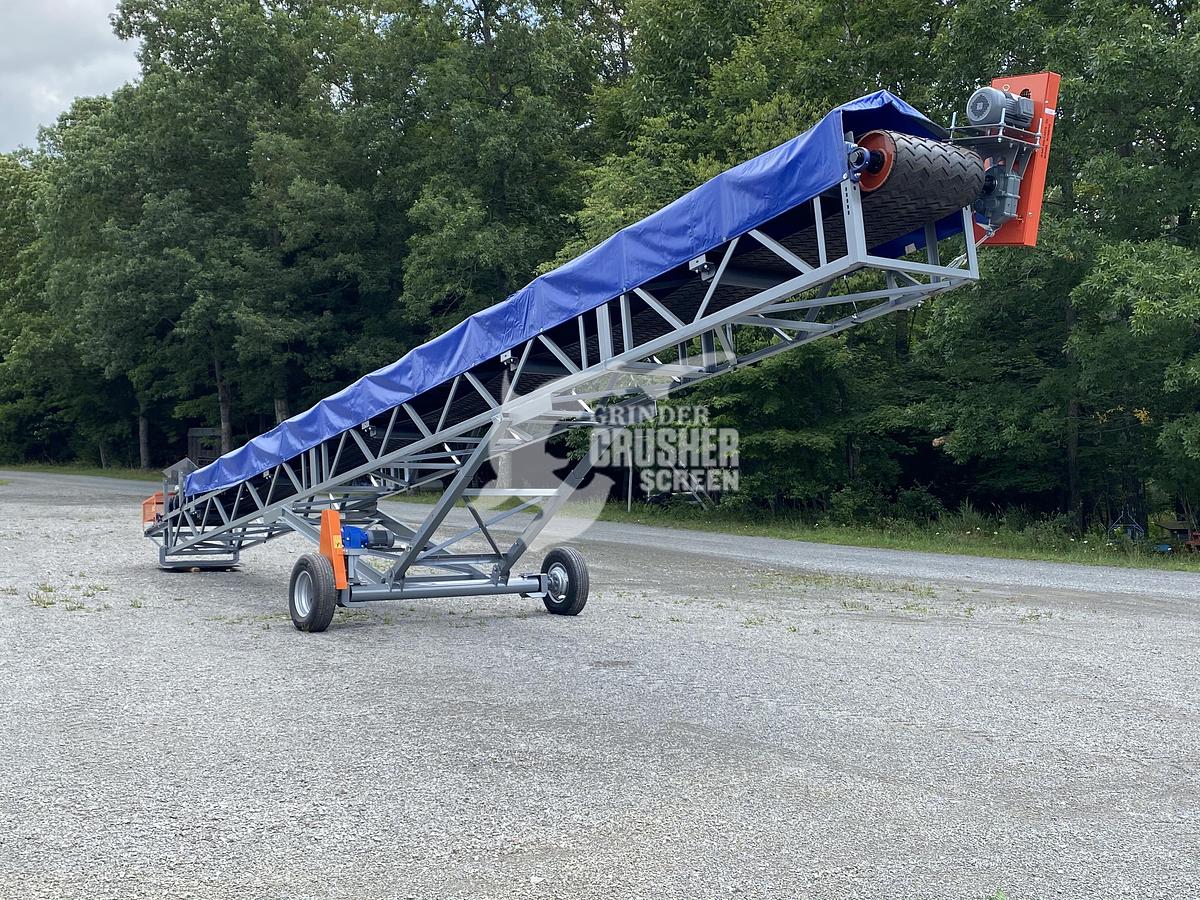

New Pit Portable 80' Radial Stacking Conveyors

Discharge Height: 25' High (18°) - 2 Adjustments

Loading Height: 52" (standard) Custom heights are available

36" Deep truss, 3x3x1/4 Cord Angle, 2x2x1/4 Lattice

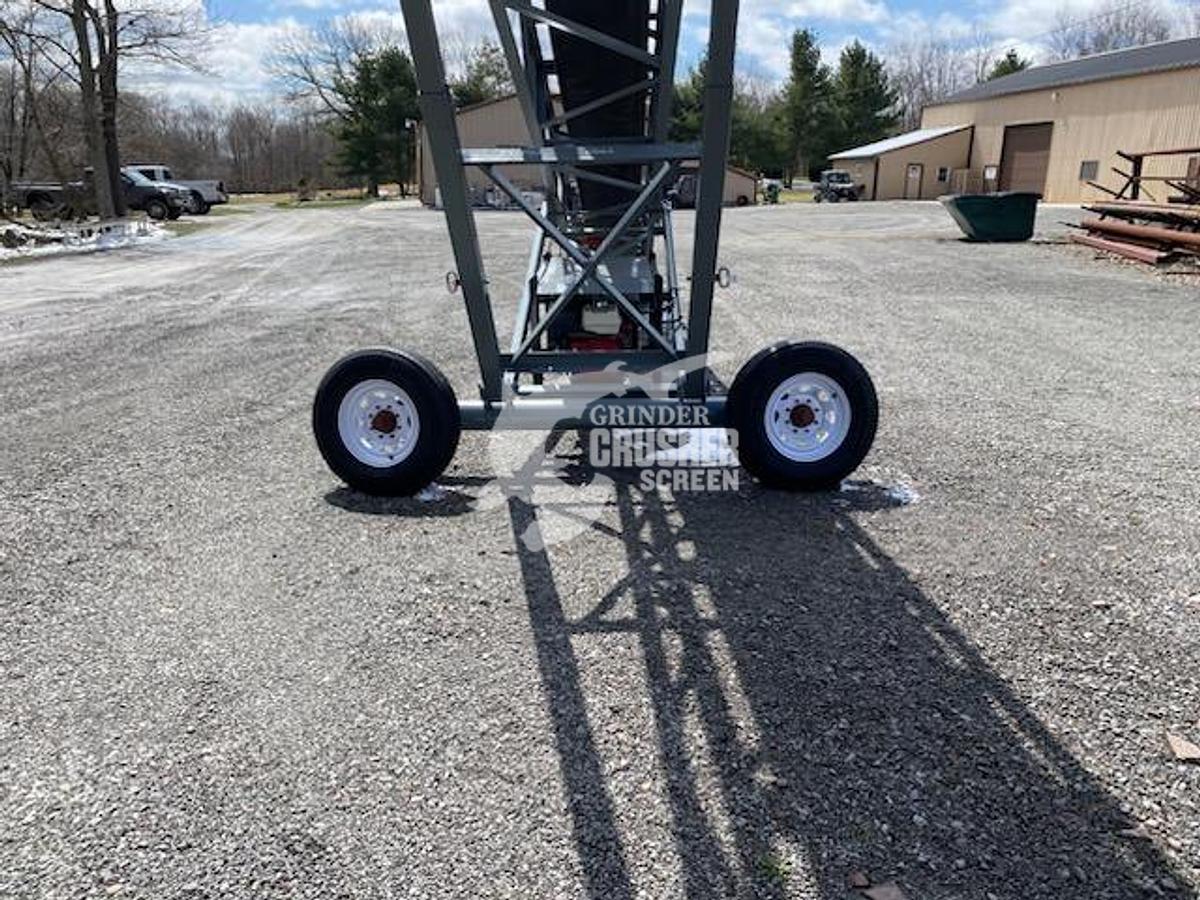

10" Pipe Axle

10-Bolt 22.5" 14 Ply Wheels & Tires

Lagged head Pulley: 14" Diameter, 2 15/16" Shaft

Winged Tail Pulley: 14" Diameter, 2 15/16" Shaft

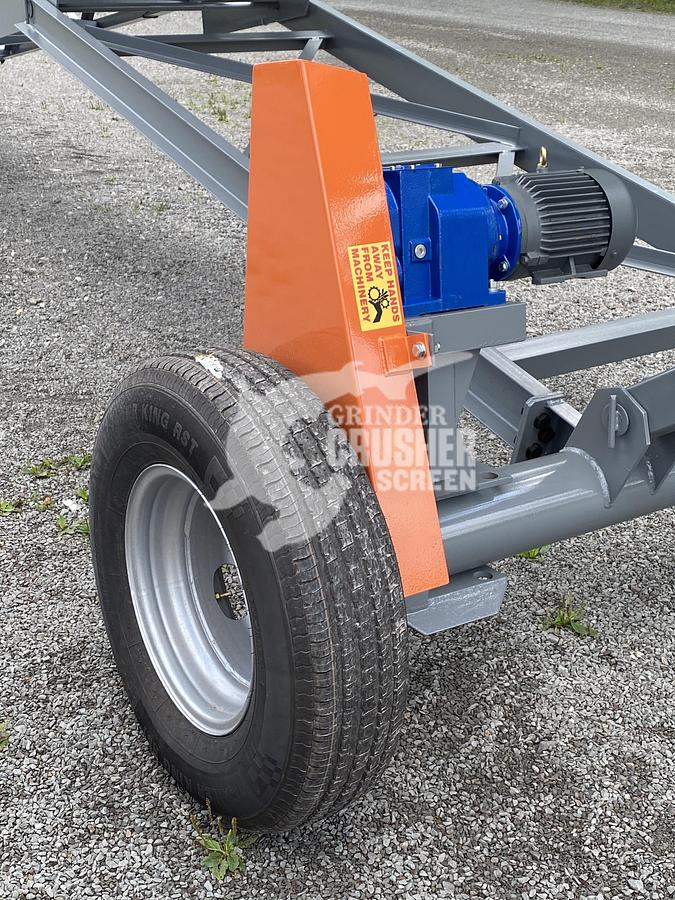

Three Phase Electric TEFC, 230/460 Volt

10HP for 24" / 15HP for 30" wide / 20HP for 36" wide

CEMA B Idlers, 4" for 24" wide and 5" for 30 or 36" wide

Options:

Backstop

Power Travel

3-Ply Belt

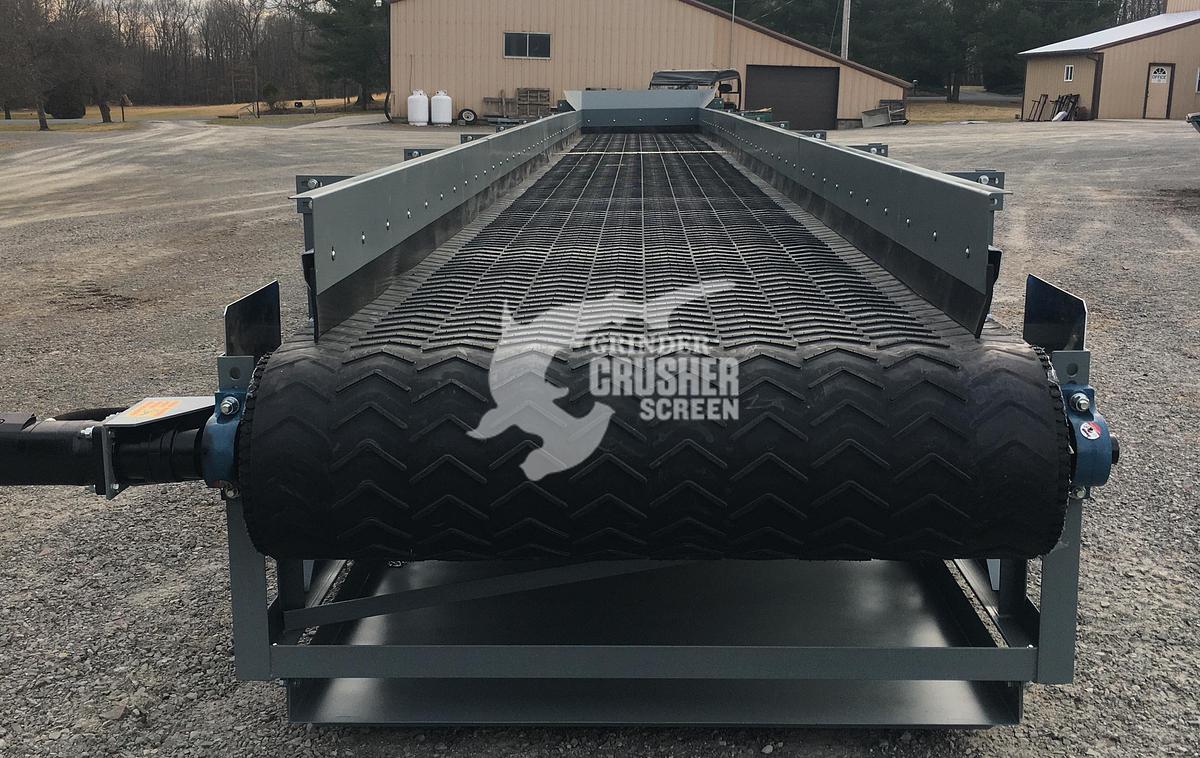

Chevron Belt

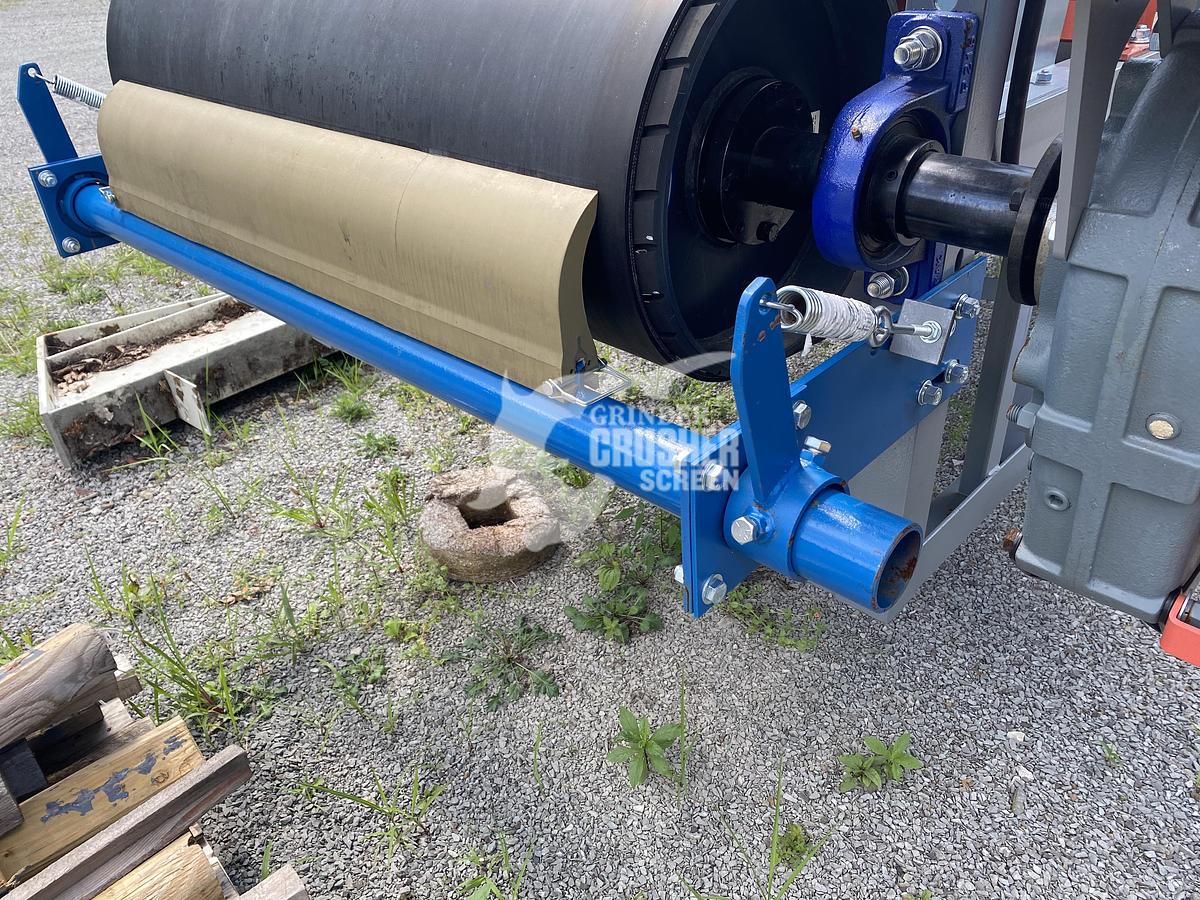

Belt Scraper

Catwalk

Wind Screen Support Hoops

*Assembly Required

*Customer is responsible for all wiring, electrical boxes, starters, and variable speed controls (VFD).

80' sizes available including: 24"x80', 30"x80' 36"x80'

GCS 80' PIT PORTABLE RADIAL STACKING CONVEYOR
