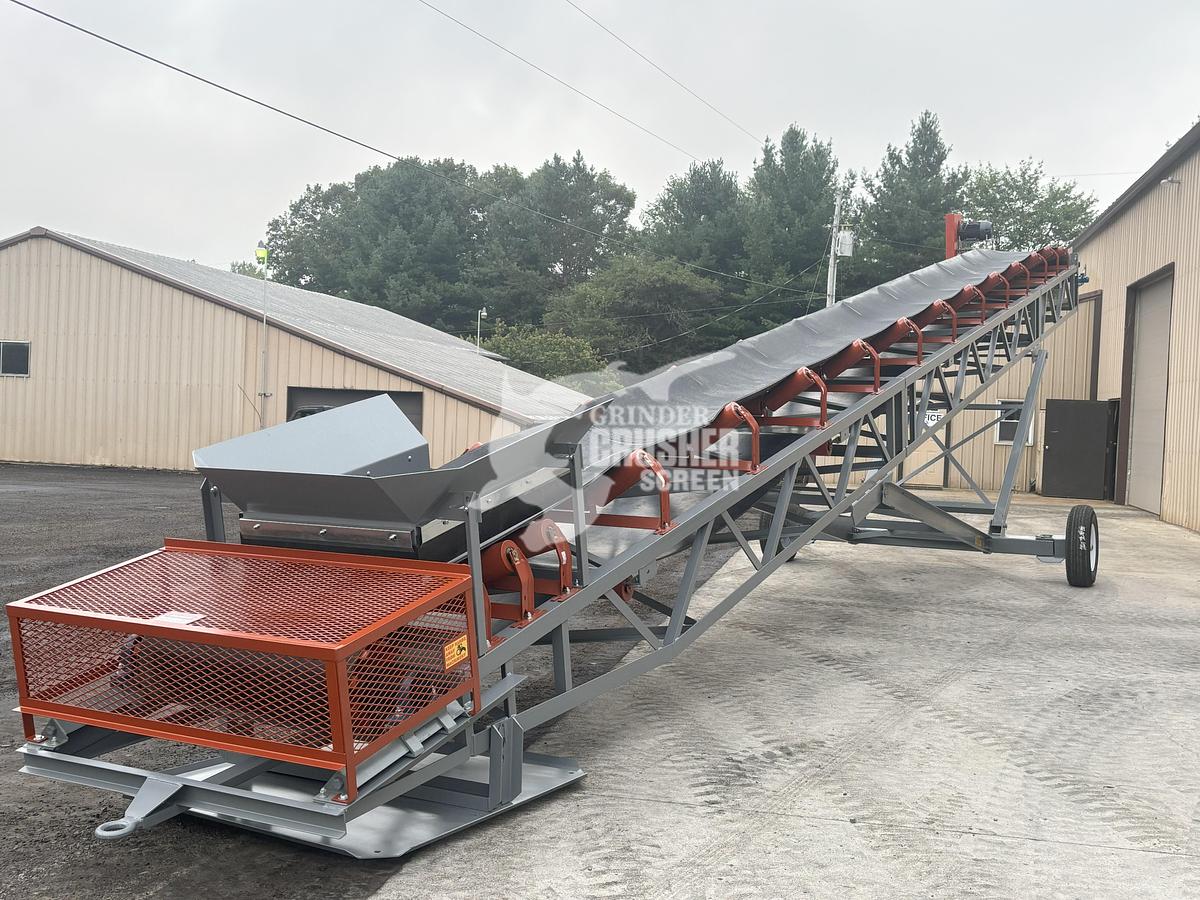

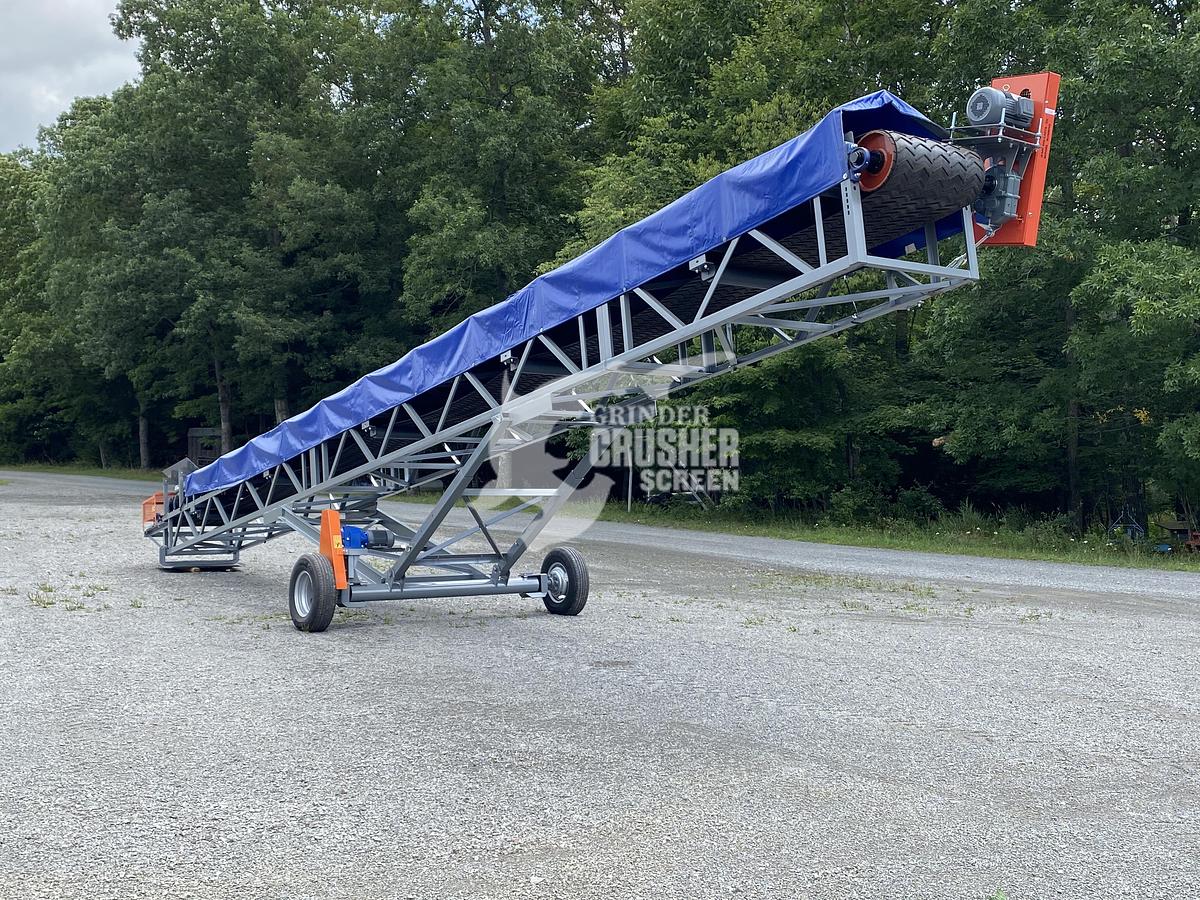

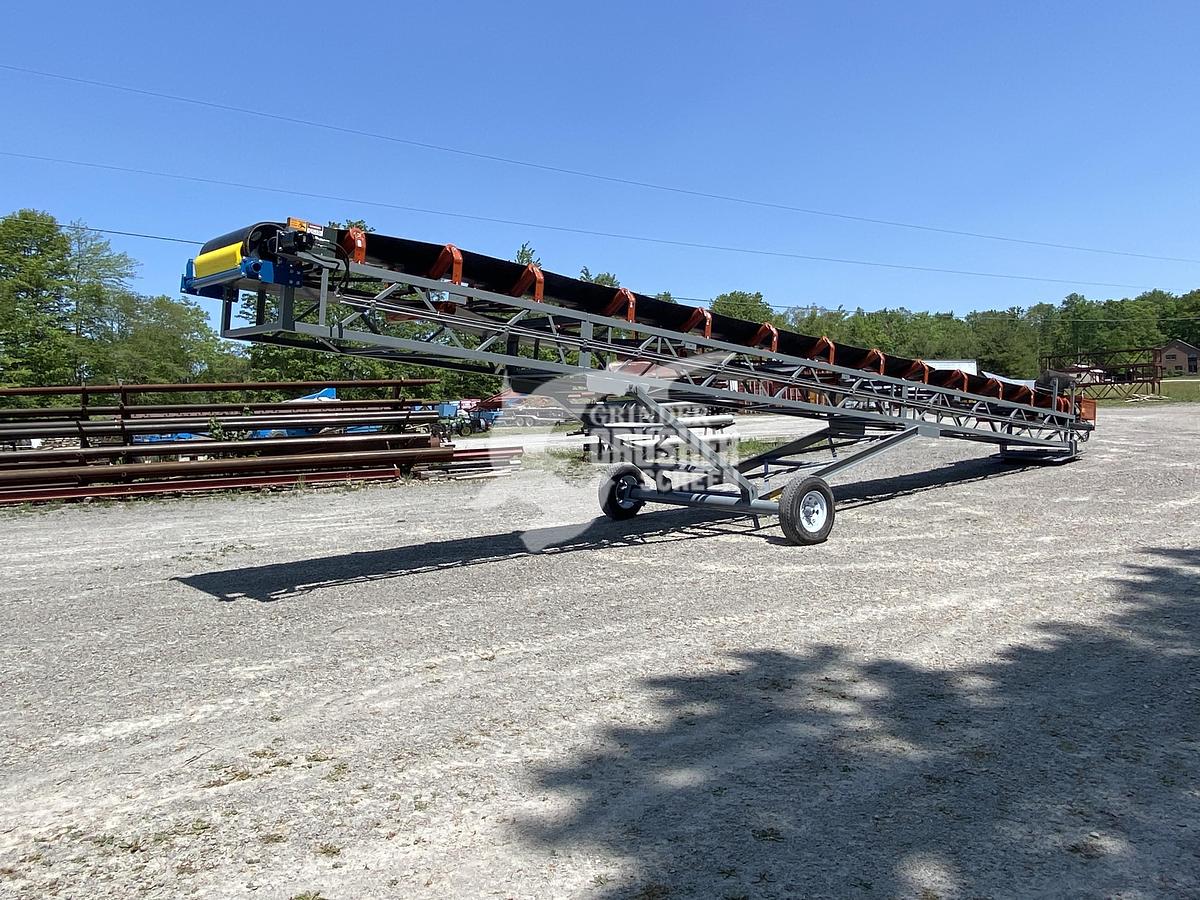

New Pit Portable 50' Radial Stacking Conveyors

Discharge Height: 16' High (18°) - 2 Adjustments

Loading Height: 52" (standard) Custom heights are available

24" Deep truss, 3x3x1/4 Cord Angle, 1-1/2x1-1/2x3/16 Lattice

8" Pipe Axle

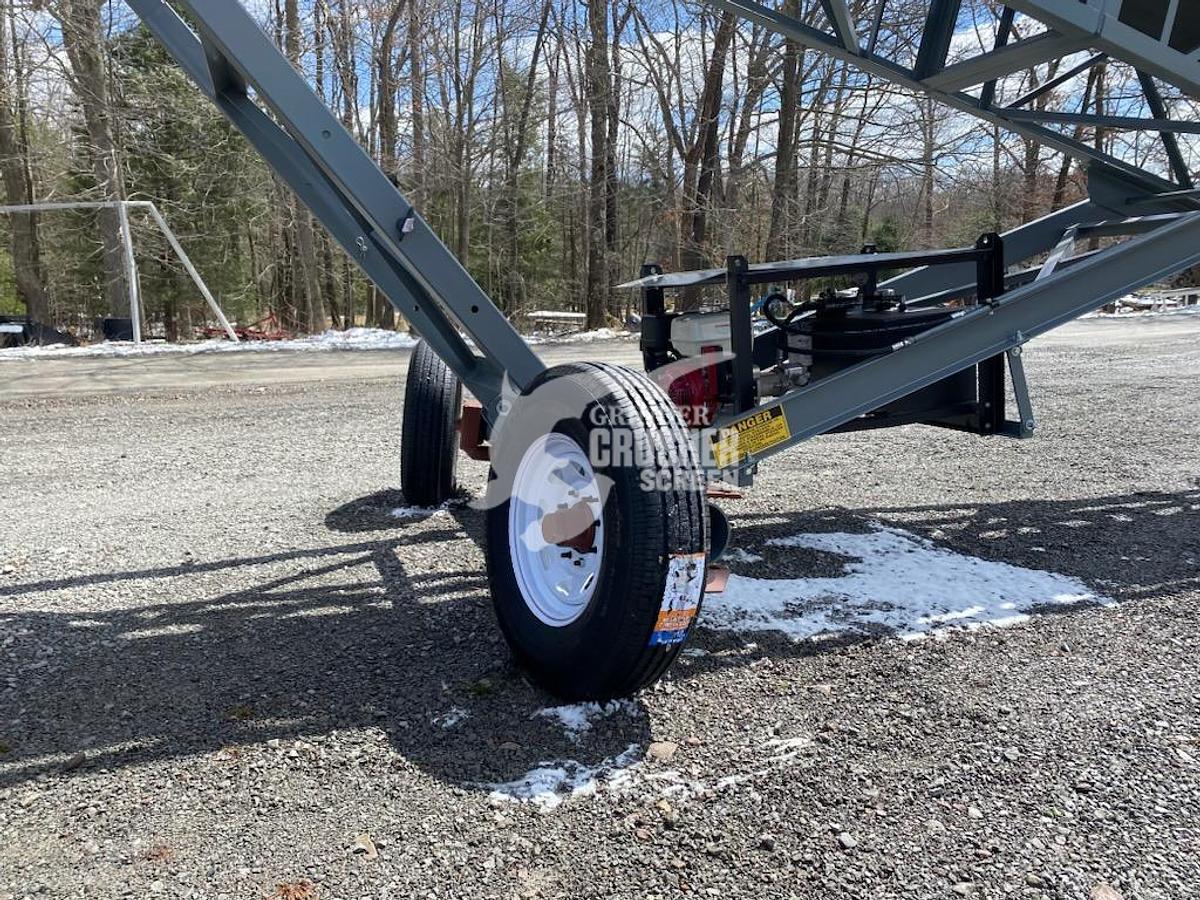

8-Bolt 16" 10 Ply Wheels & Tires

Lagged head Pulley: 14" Diameter, 2 7/16" Shaft

Winged Tail Pulley: 14" Diameter, 2 7/16" Shaft

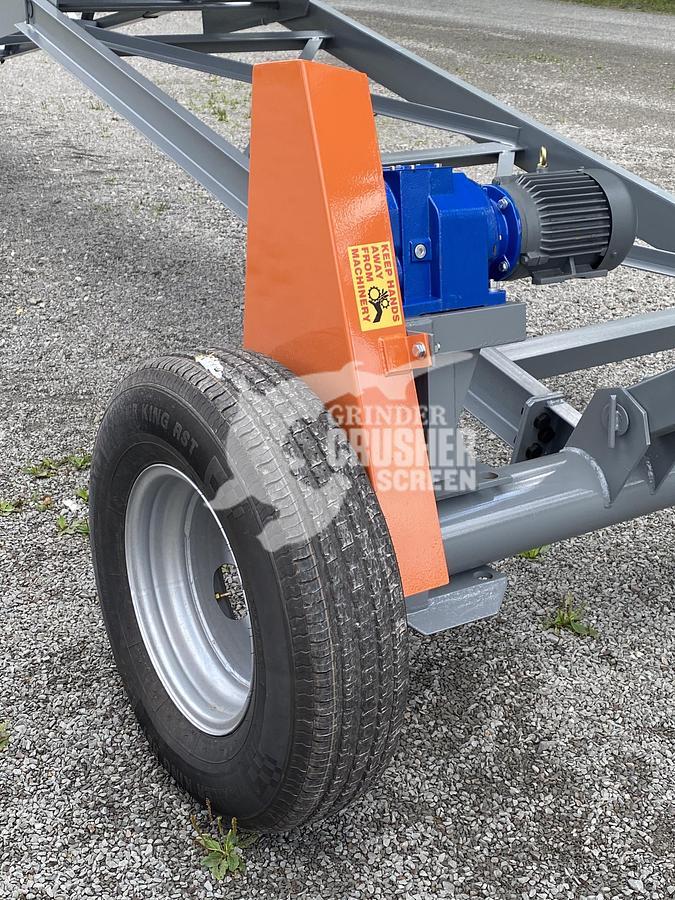

Three Phase Electric TEFC, 230/460 Volt

7.5HP for 24" wide / 10HP for 30" or 36" wide

CEMA B Idlers, 4" for 24" wide and 5" for 30 or 36" wide

Options:

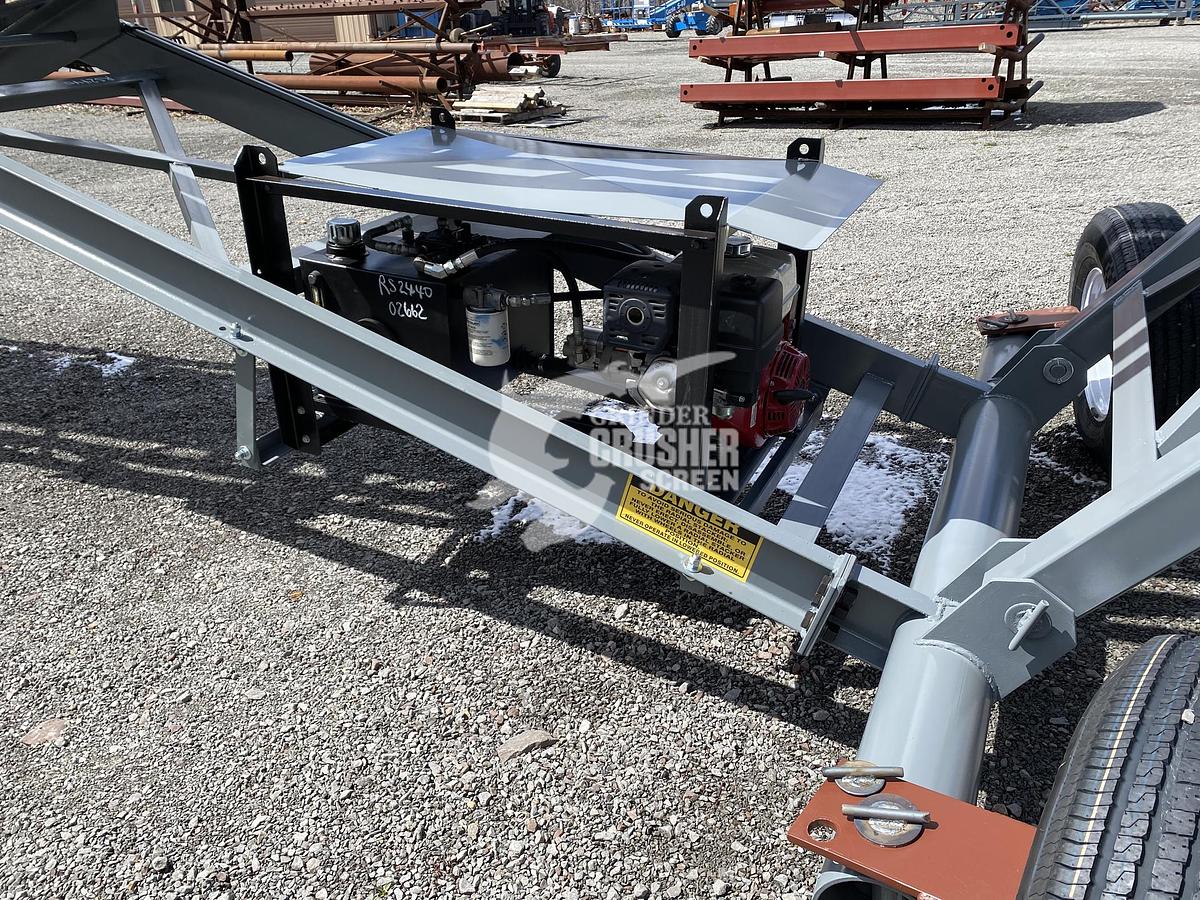

Self-contained Power

Single-Phase Motor

Hydraulic Motor

Backstop

Power Travel

3-Ply Belt

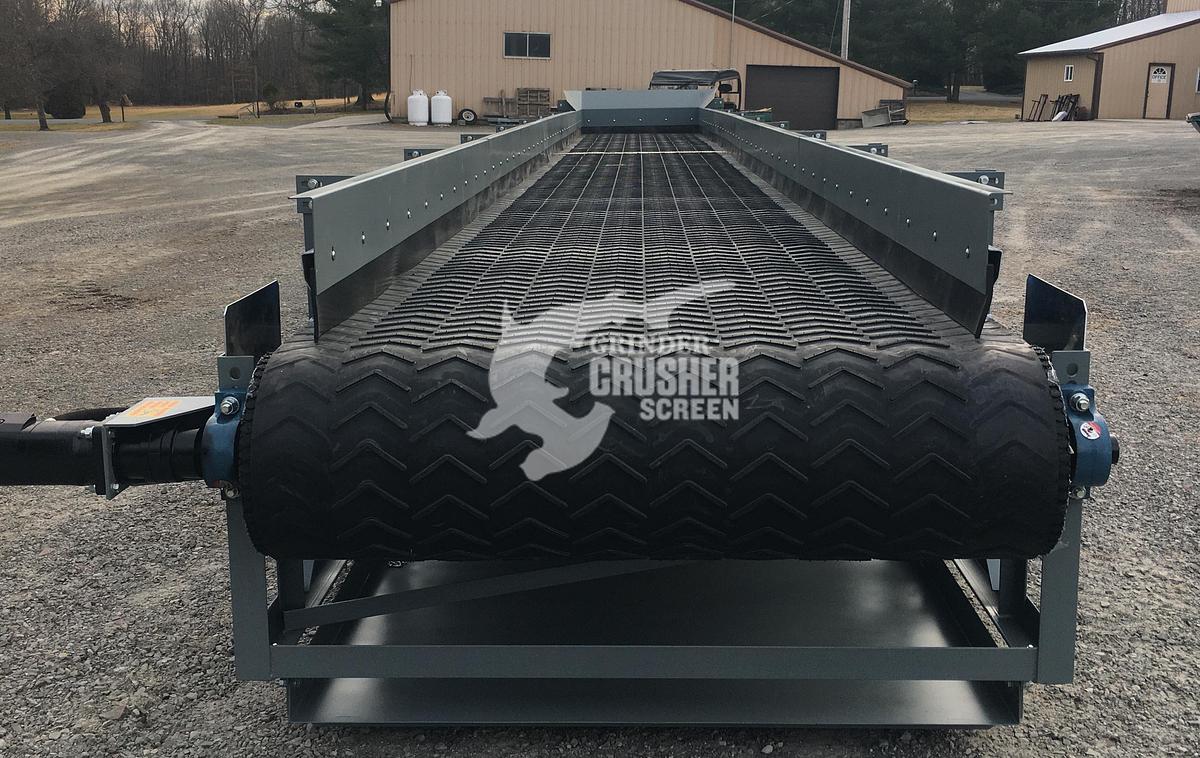

Chevron Belt

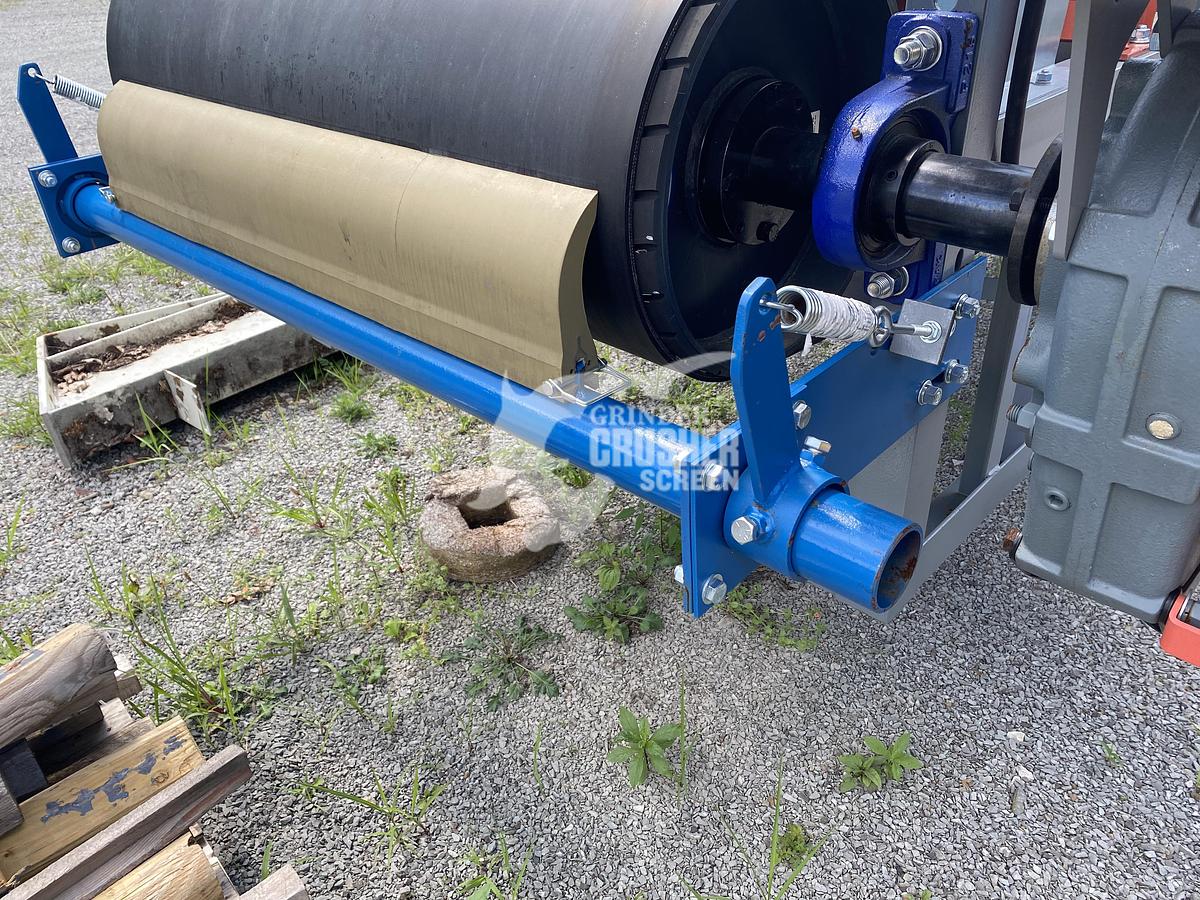

Belt Scraper

Catwalk

Wind Screen Support Hoops

No Axle

*Assembly Required

*Customer is responsible for all wiring, electrical boxes, starters, and variable speed controls (VFD).

50' sizes available including: 24"x50', 30"x50' 36"x50'

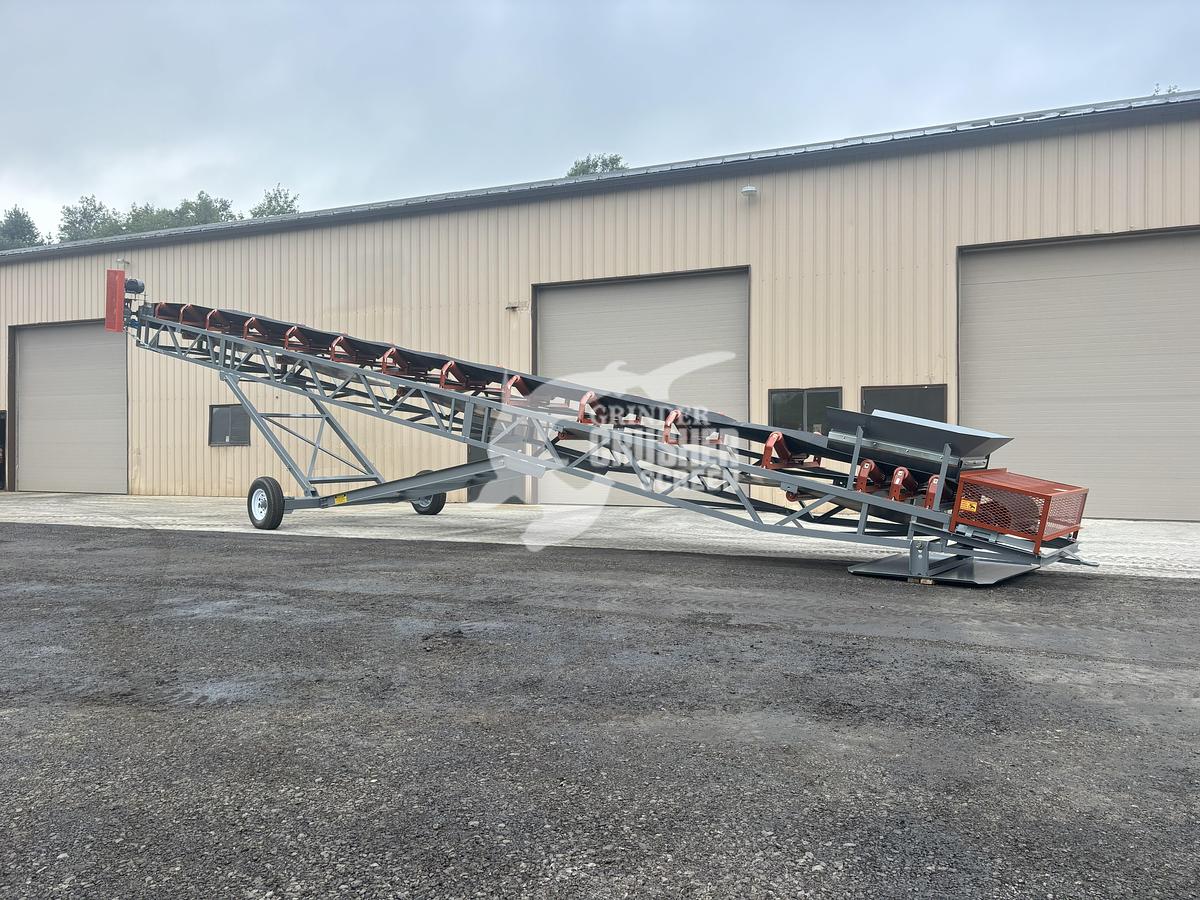

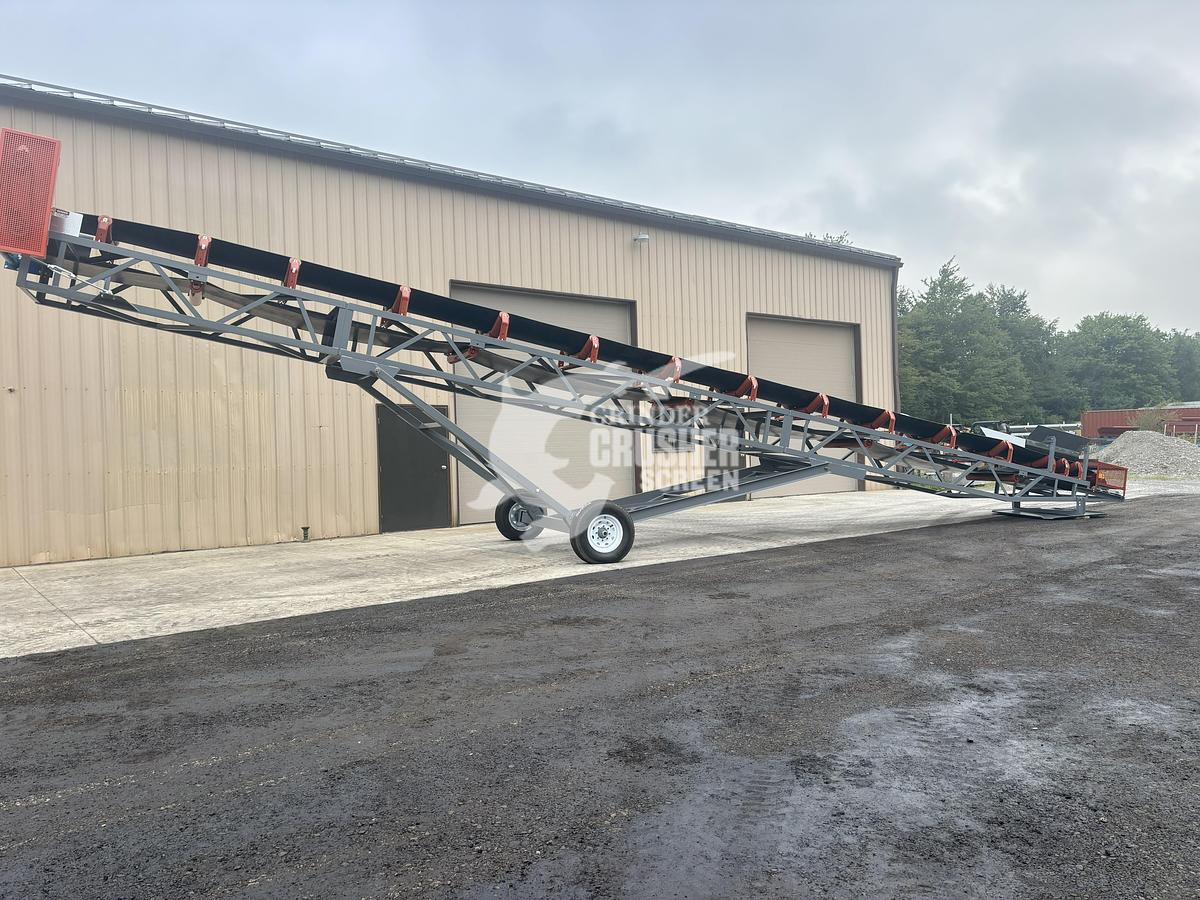

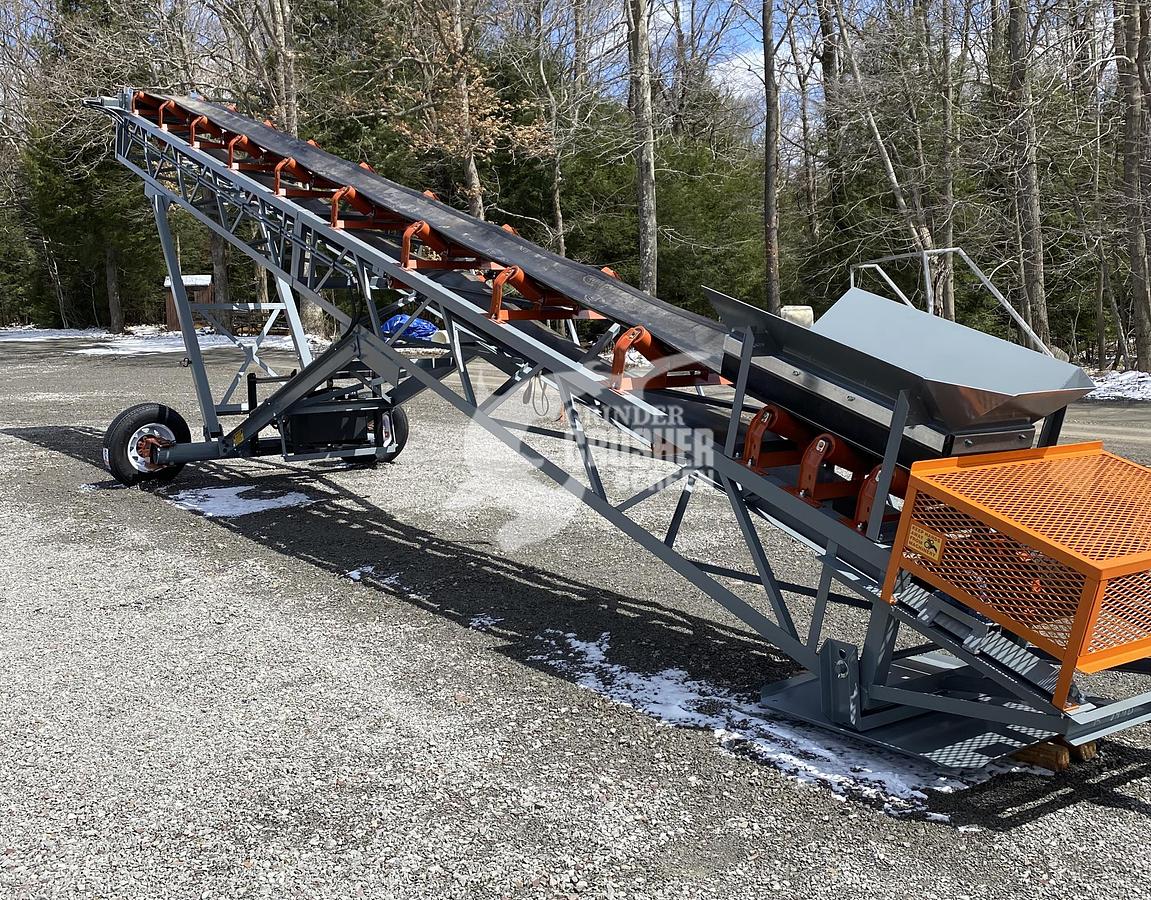

GCS 50' PORTABLE RADIAL STACKING CONVEYOR
