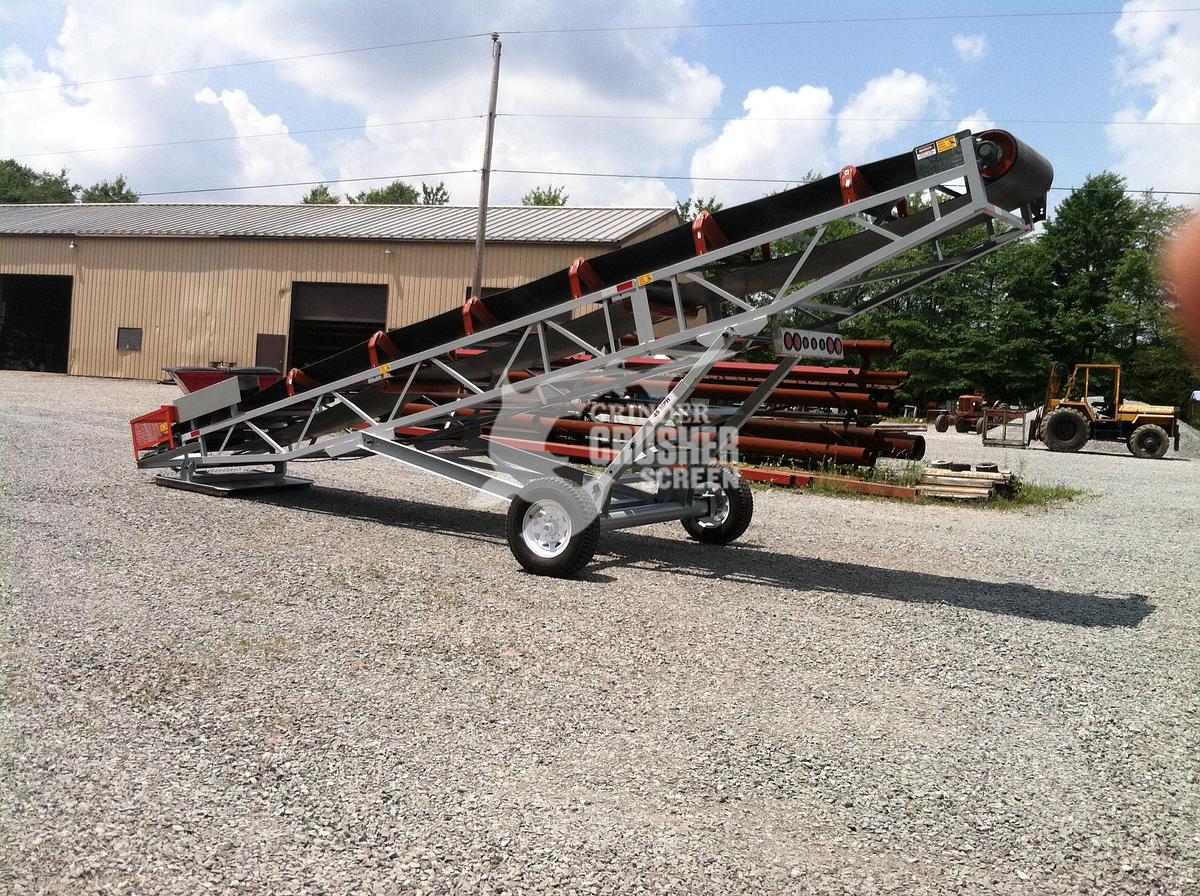

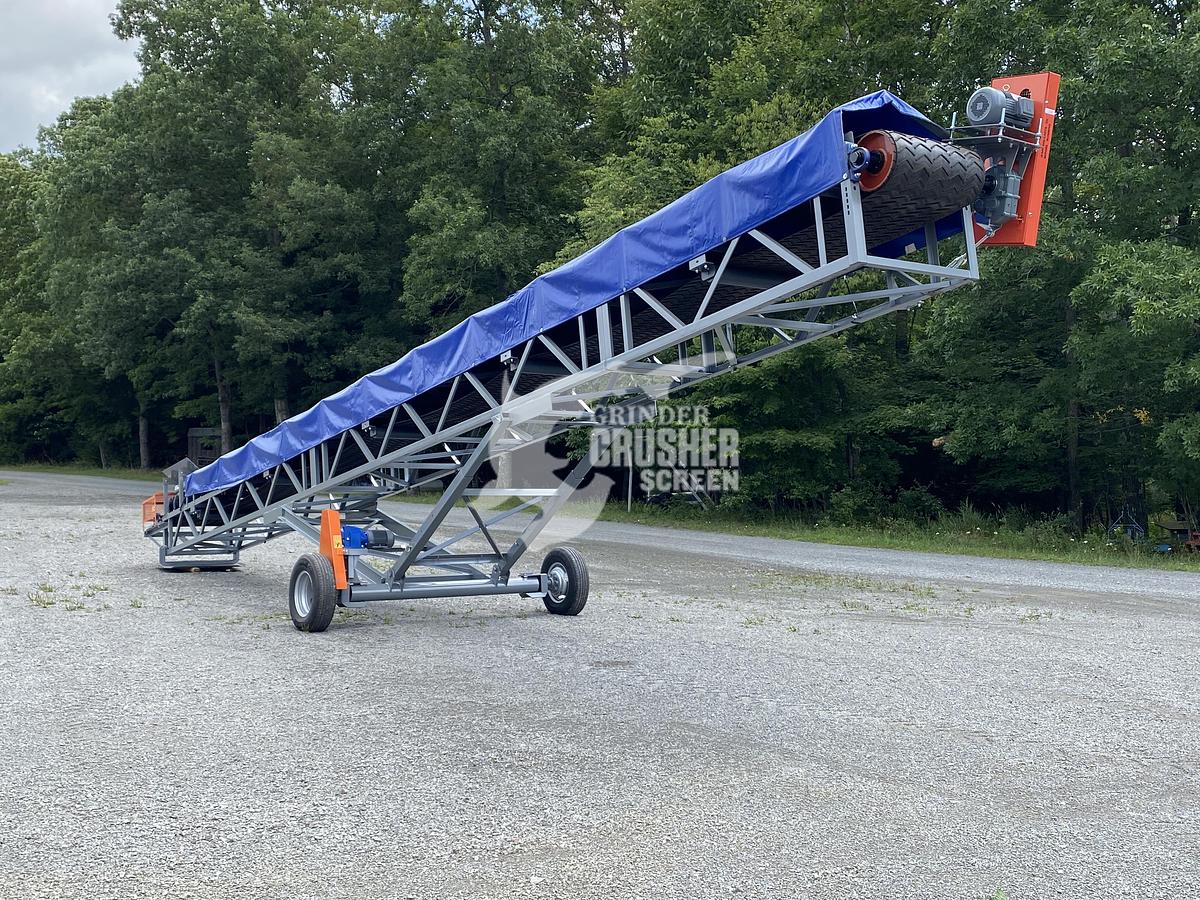

New Pit Portable 30' Radial Stacking Conveyors

Discharge Height: 10' High (18°) - 2 Adjustments

Loading Height: 52" (standard) Custom heights are available

24" Deep Truss, 3x3x1/4 Cord Angle, 1-1/2x1-1/2x1/4 Lattice

8" Pipe Axle

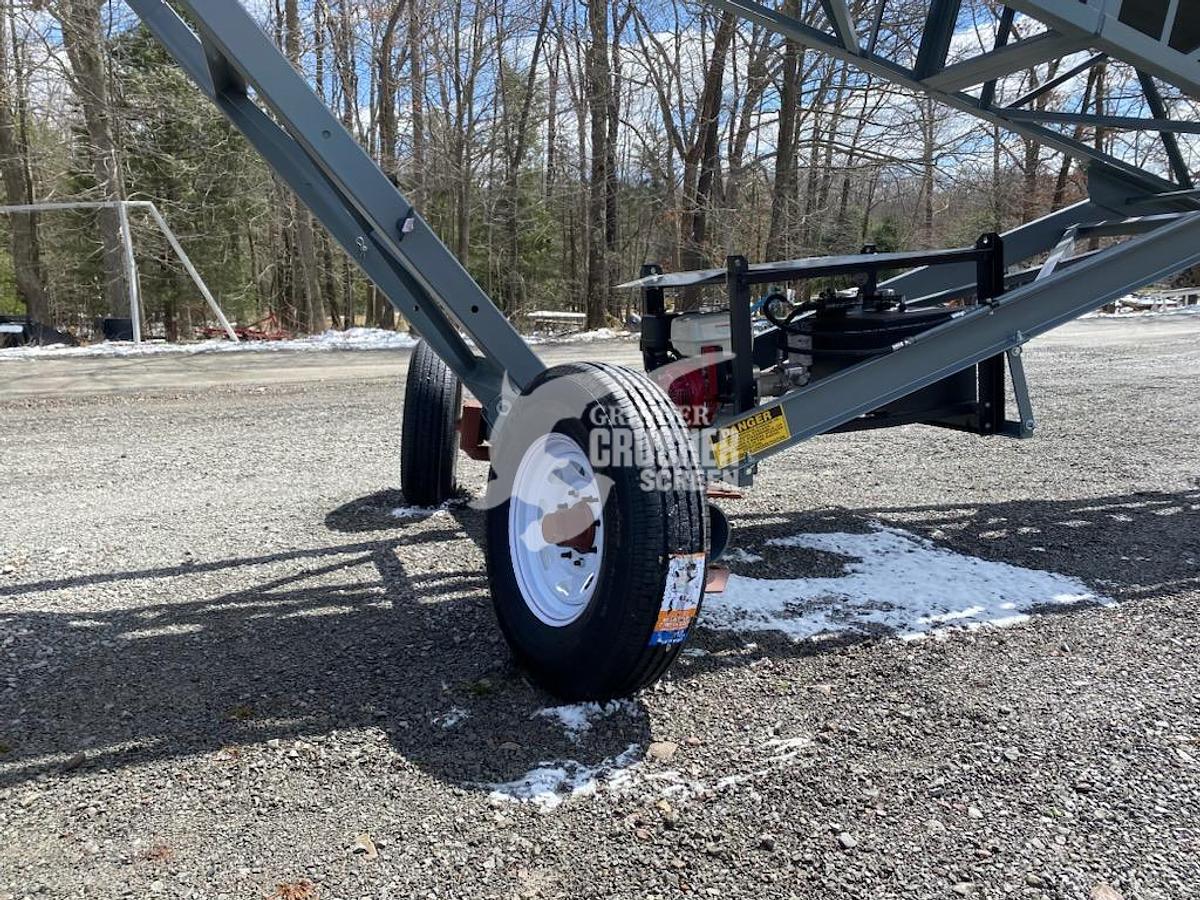

8-Bolt 16" 10 Ply Wheels & Tires

Lagged head Pulley: 14" Diameter, 2 7/16" Shaft

Winged Tail Pulley: 14" Diameter, 2 7/16" Shaft

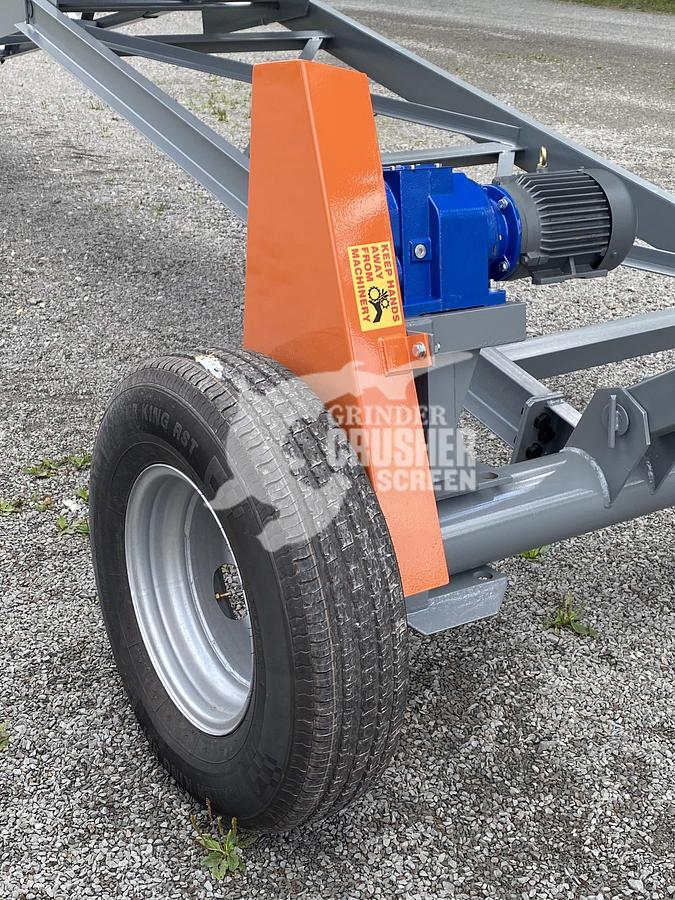

Three Phase Electric TEFC, 230/460 Volt

3HP for 24" wide / 5HP for 30" or 36" wide

CEMA B Idlers, 4" for 24" wide and 5" for 30 or 36" wide

Options:

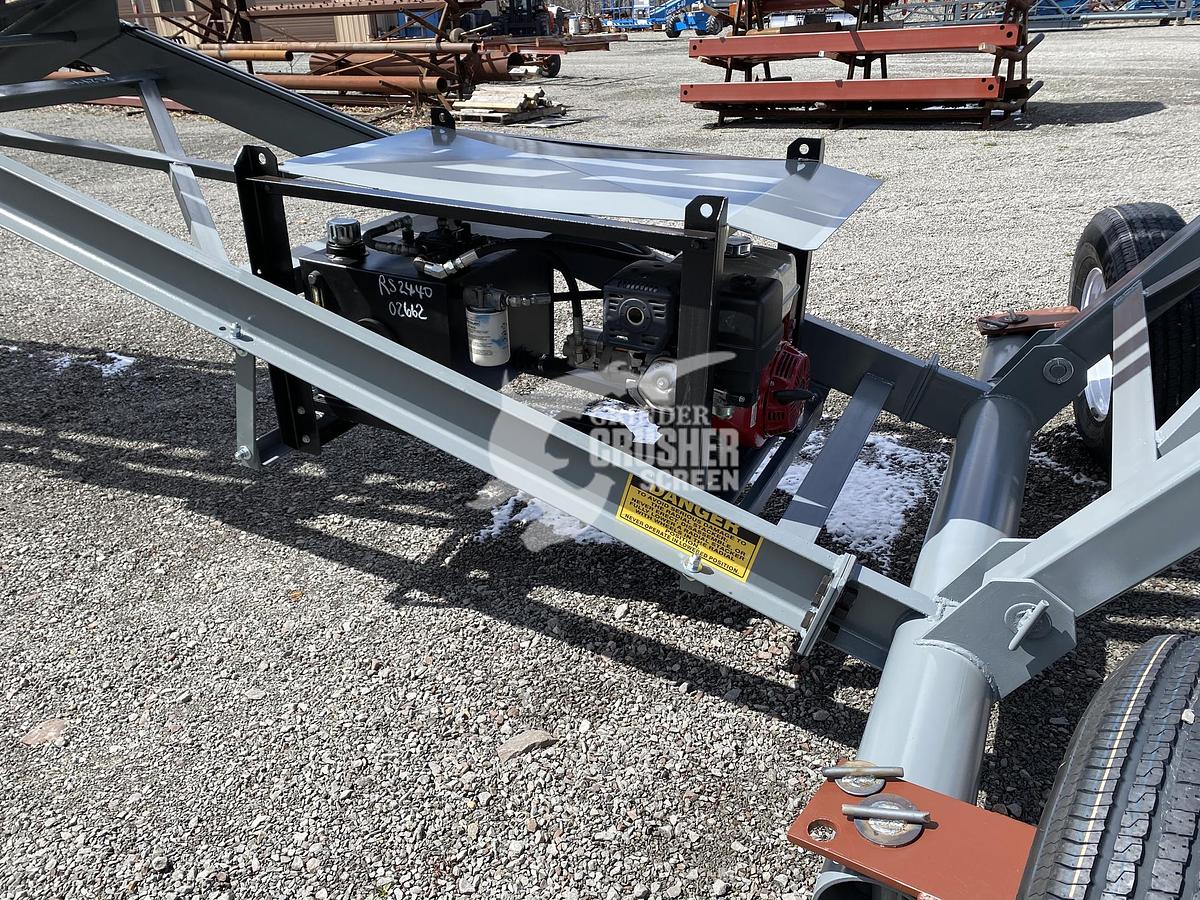

Self-contained Power

Single-Phase Motor

Hydraulic Motor

Backstop

Power Travel

3-Ply Belt

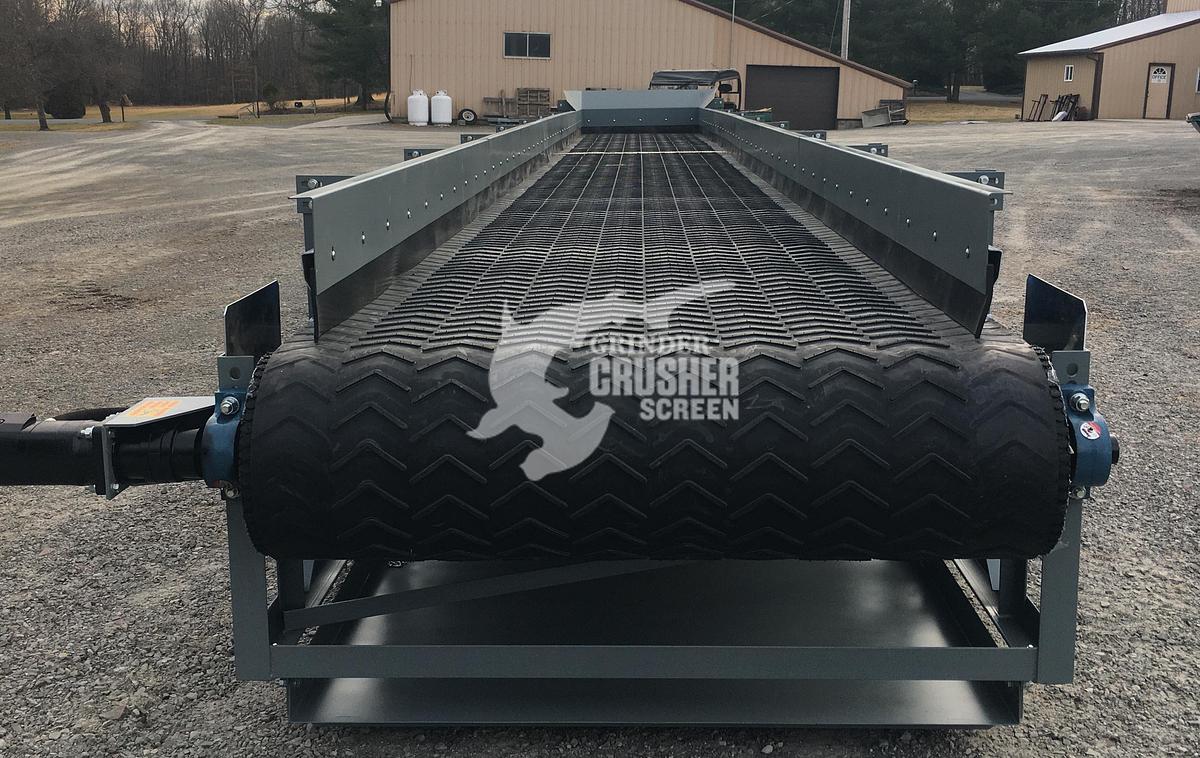

Chevron Belt

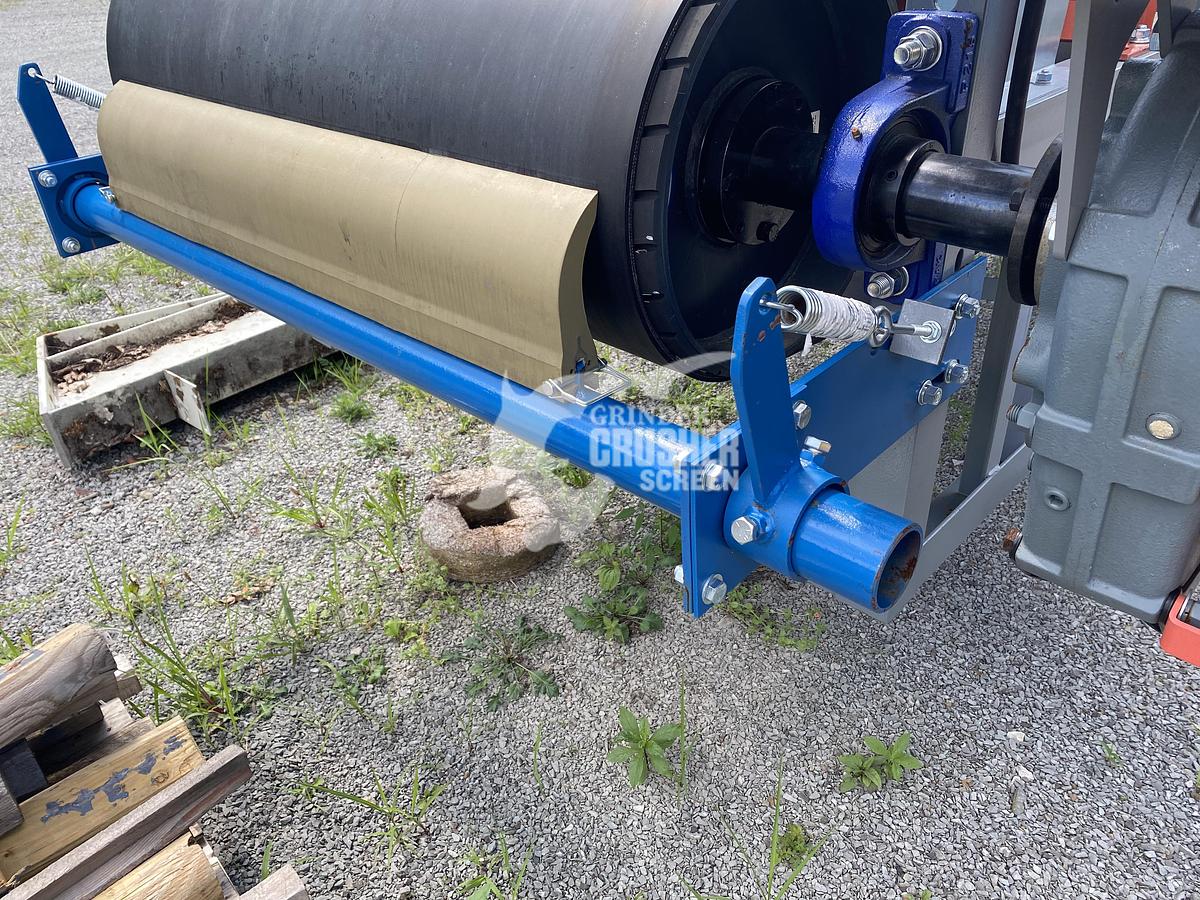

Belt Scraper

Catwalk

Wind Screen Support Hoops

No Axle

*Assembly Required

*Customer is responsible for all wiring, electrical boxes, starters, and variable speed controls (VFD).

30' sizes available including: 24"x30', 30"x30' 36"x30'

GCS 30' PORTABLE RADIAL STACKING CONVEYOR
