NEW SCREEN USA TRACK MOUNTED FEEDER STACKING CONVEYOR TFS6542
NEW SCREEN USA TRACK MOUNTED FEEDER STACKING CONVEYOR TFS6542
$179,900 (USD)
+ Tariff (if applicable) - HB
or
Call 770-433-2670
Description

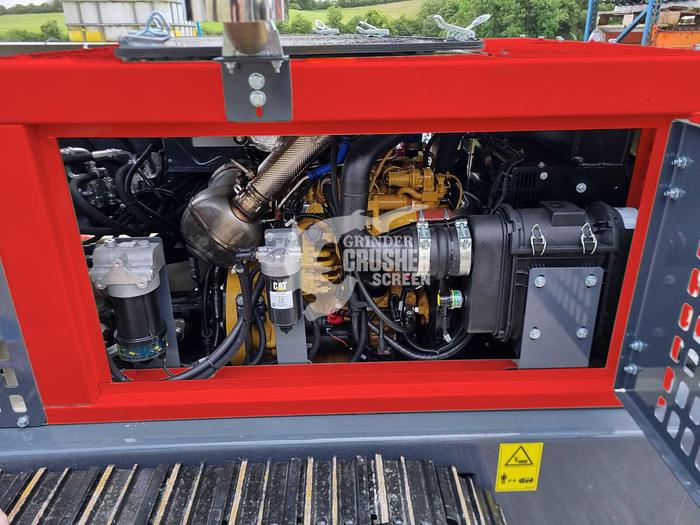

ENGINE
- 100HP CAT Tier 4 final diesel/stage 5
FRAME
- Deep folded plate frame constructed with heavy duty cross bracing for strength and stability.
- Hydraulic folding head section.
- Hydraulic raise/lower for discharge.
- Removeable hopper section for ease of transport/maintenance.
- Replaceable wear liners in hopper.
BELT
- 3-ply equivalent (European style) vulcanized.
- Chevron belt on discharge (optional)
- Adjustable polyurethane belt cleaner.
OTHER
- Twin hydraulic drive on discharge.
- Loading height: 10'-2"
- Stockpile capacity: 1,539 cu.yd
- Weight: 37,400 lbs.
OPTIONAL

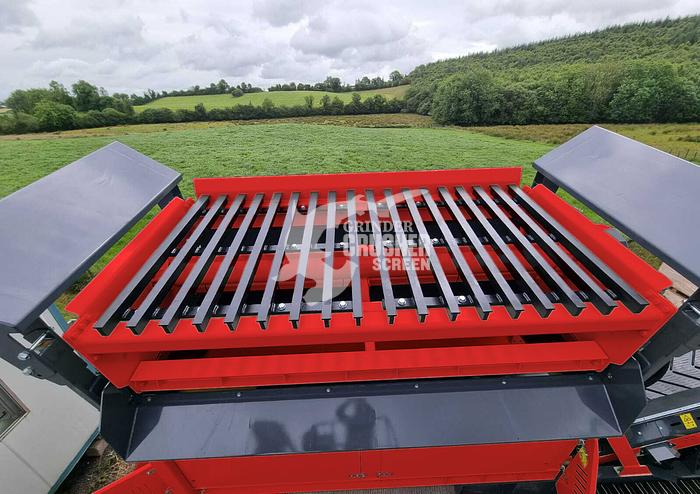

- Hydraulic tipping grizzly
- Chevron belt: $2,550
- Live head shaker: $29,500
- 120HP Cat C3.6
- Shredder /Hammermill/ Pulverizer
FT02-0501CM
MC1050-20TF
Specifications
| Stock Number | GCS241010-1 |
| Hours | 0 |
| Engine Hours | 0 |
| Engine | 100HP CAT Tier 4 final diesel/stage 5 |
| Length | 77'-0" (Operational) - 51'-0" (Transport) |
| Width | 7'-8" |
| Height | 30'-0" (Operational) - 10'-0" (Transport) |
| Max stockpiling capacity | 1,539 cu.yd |
| Weight | 37,400 lbs |
