NEW SCREEN USA PORTABLE RADIAL STACKING CONVEYOR WC6536
NEW SCREEN USA PORTABLE RADIAL STACKING CONVEYOR WC6536
$149,000 (USD)
IN STOCK NOW - HB
or
Call 770-433-2670
Description
65' long, 36" wide conveyor made in the USA!
ENGINE
- 47HP Yanmar Tier 4 final diesel
FRAME
- Heavy duty lattice angle construction to give added stability and to withstand the rigours of heavy duty operation.
- Hydraulic folding head section.
UNDERCARIAGE
- Hydraulic raise and lower.
- Galvanized trestle with variable feed and discharge heights.
BELT
- 3-ply vulcanized.
- Self adjusting polyurethane belt cleaner.
OTHER

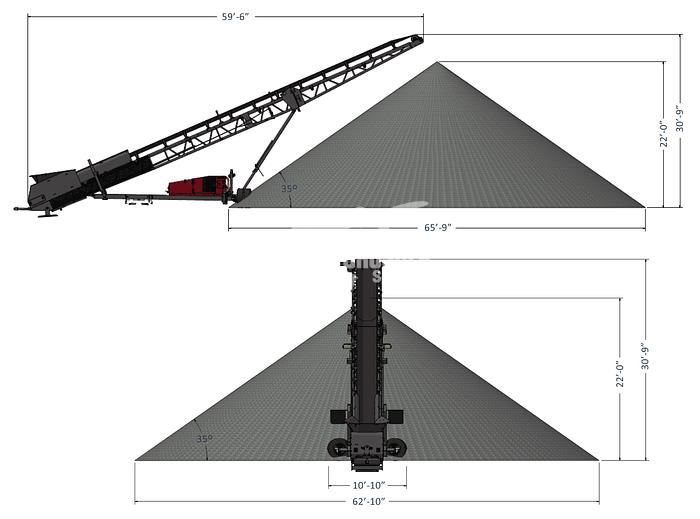

- Max discharge height of 26'-1"
- 1.3 yd hopper.
- Weight 20,600 lbs.
- Max stockpiling of 842 cu.yd
DWBF
Specifications
| Stock Number | GCS242504-3 |
| Hours | 0 |
| Engine | 47HP Yanmar Tier 4 final diesel |
| Length | 47'-7" (transport) - 65'-0" (working) |
| Width | 10'-1" (transport) - 10'-8" (working) |
| Height | 12'-5" (transport) - 30'-9" (working) |
| Max stockpiling capacity | 842 cu.yd |
| Weight | 20,600 |
