NEW SCREEN USA ROAD PORTABLE RADIAL STACKING CONVEYOR WC10036
NEW SCREEN USA ROAD PORTABLE RADIAL STACKING CONVEYOR WC10036
$169,900 (USD)
PI
or
Call 770-433-2670
Description
100' long, 36" wide conveyor made in the USA!
ENGINE
- 74HP Yanmar Tier 4 final diesel
FRAME
- Heavy duty lattice angle construction to give added stability and to withstand the rigours of heavy duty operation.
- Hydraulic folding head section.
UNDERCARIAGE
- Hydraulic raise and lower.
- Galvanized trestle with variable feed and discharge heights.
BELT
- 3-ply vulcanized.
- Self adjusting polyurethane belt cleaner.
OTHER

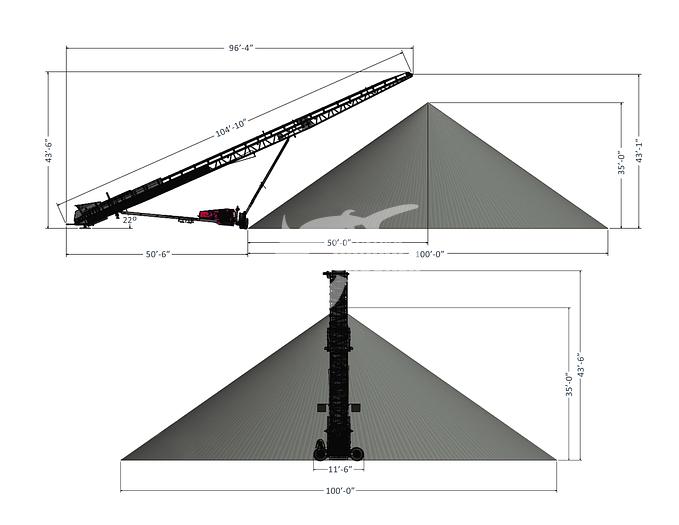

- Max discharge height of 43'-1"
- 1.3 yd hopper.
- Weight 29,060 lbs.
- Max stockpiling of 3,392 cu.yd
OPTIONS
- Power Radial
- Hydraulic axle extensions
- AR Plate Hopper Liner
- Chevron Belt
HPR0000Z159T9H
(+T10)
Specifications
| Stock Number | GCS242504-4 |
| Hours | 0 |
| Engine | 74HP Yanmar Tier 4 diesel |
| Length | 73'-2" (transport) - 100'-0" (working) |
| Width | 11'-0" (transport) - 11'-5" (working) |
| Height | 13'-3" (transport) - 43'-3" (working) |
| Max stockpiling capacity | 3,392 cu.yd |
| Weight | 29,060 |
