10PIECE C&D RECYCLING CENTER

No longer available

10PIECE C&D RECYCLING CENTER

Description

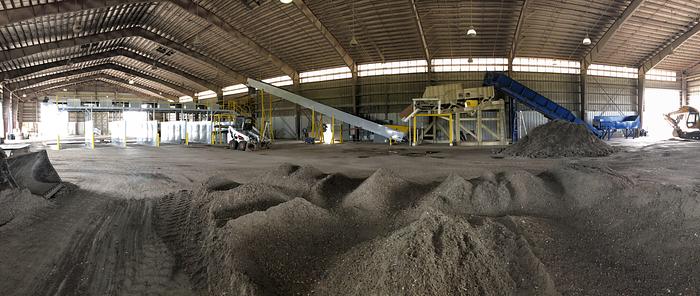

This C&D recycling line consists of the following equipment:

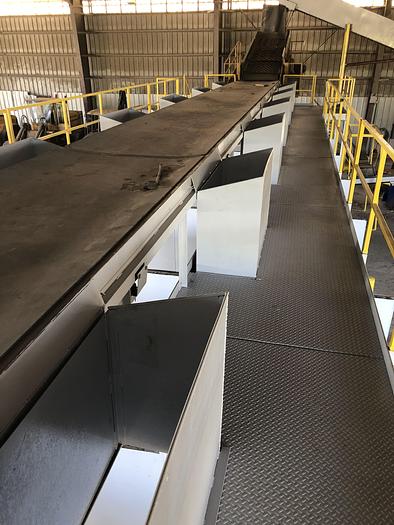

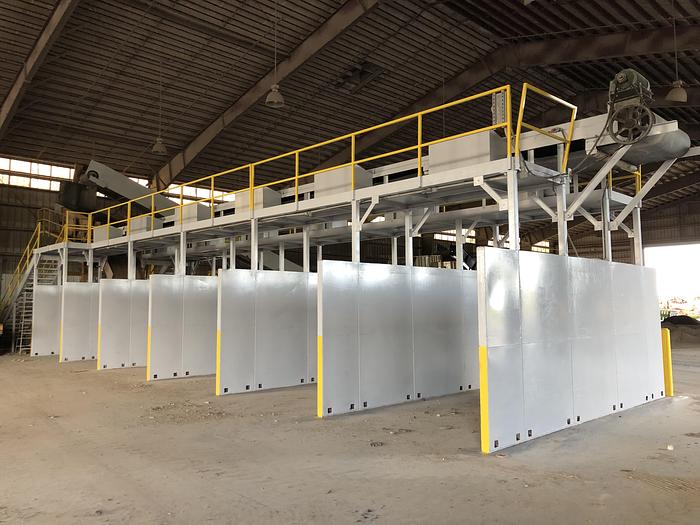

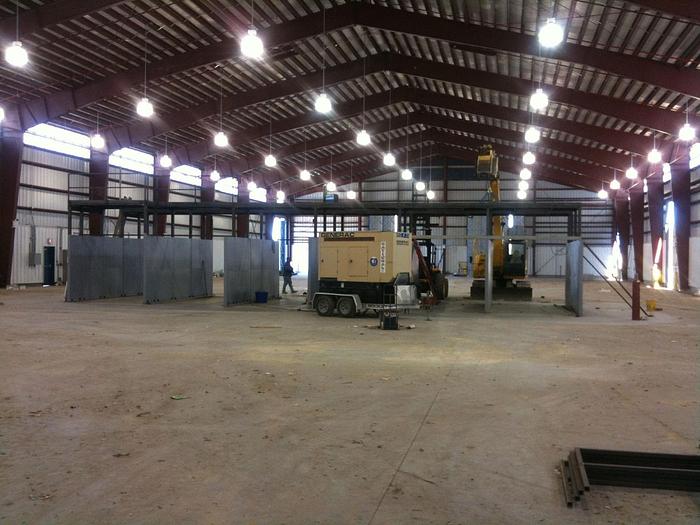

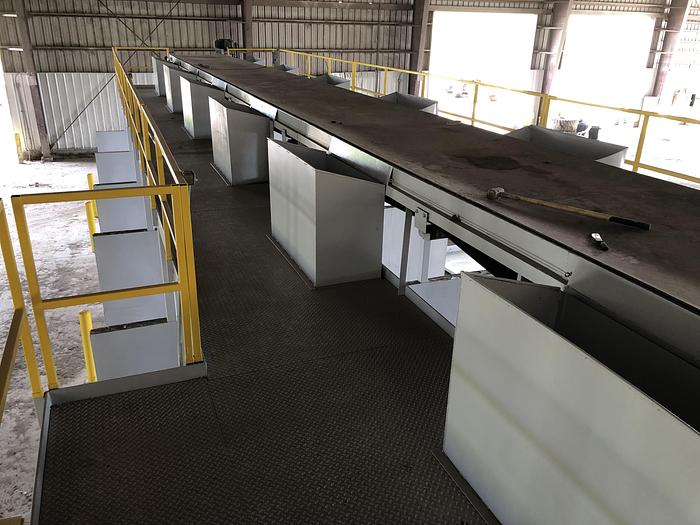

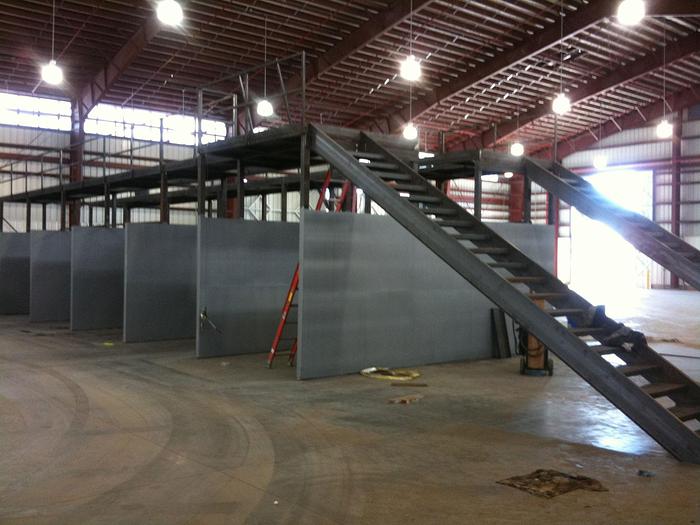

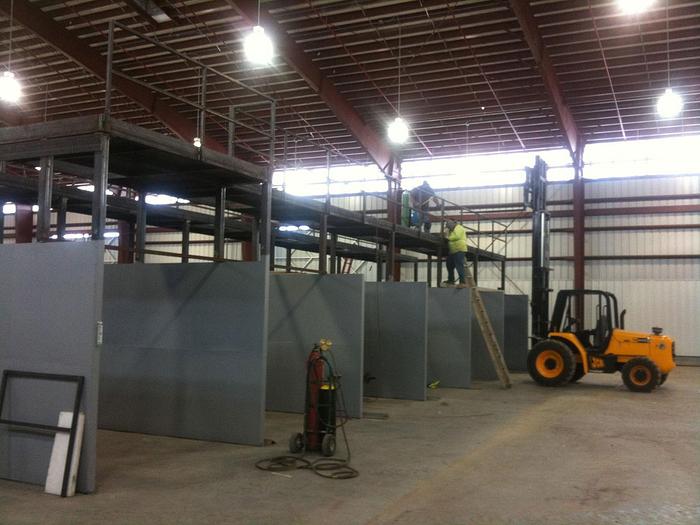

12 Station/6 Bay Modular Picking Station

- 60' long, 20' wide, 17' high overall with all 6 bays.

- 48" x 24" chute openings

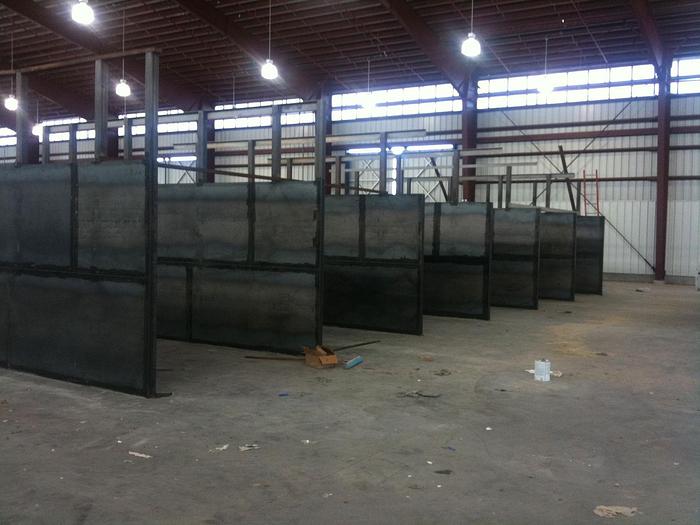

- 20' long, 8' high, 4" thick steel plated, concrete filled walls. Each anchored by ten 3/4" bolts.

- 12' raised steel platform wiht 2 catwalks and perimeter guardrails

- 2 sets of steel stairs with guardrails

- 20HP 230/260v 3-phase electric motor

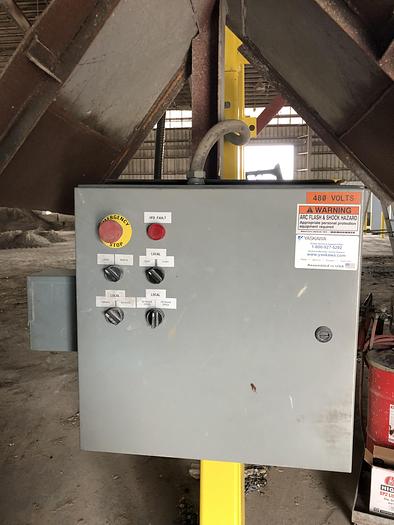

- Yaskawa V1000 variable frequency drive

- Rheostatic speed controls with Start/Stop

- Emergency cut-off switches

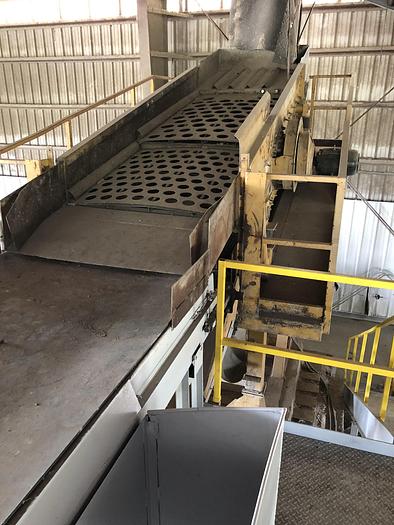

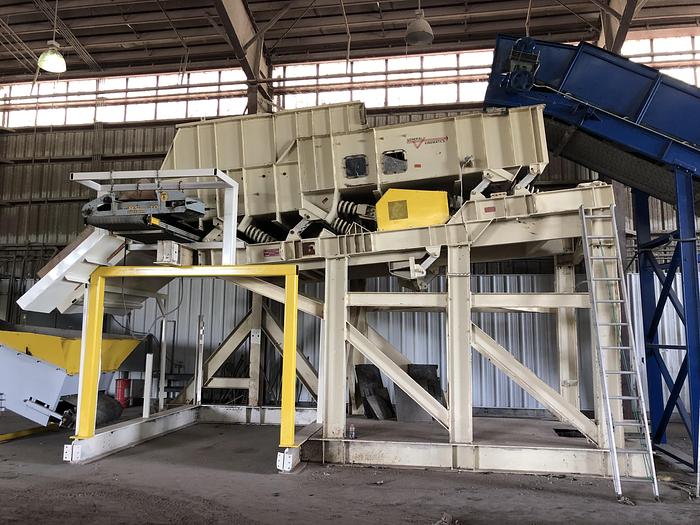

General Kinematics 96-20-S Finger Screen

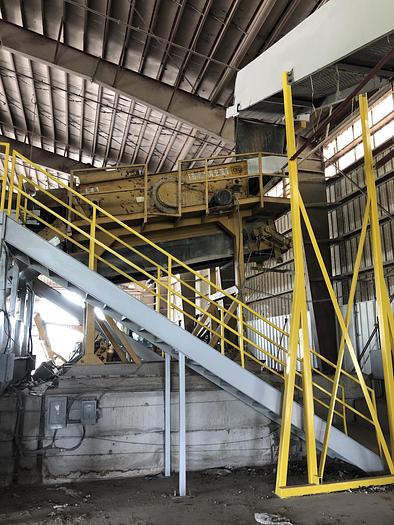

2005 CEC 5x12 Two-Deck Screen

- Skid mounted

- 12' long, 5' wide double-deck shaker screens

- 20HP electric motor

- 30" wide discharge conveyor

- Adjustable screen amplitute and speed

- Discharge chutes for top and bottom decks

- Walkway with handrails

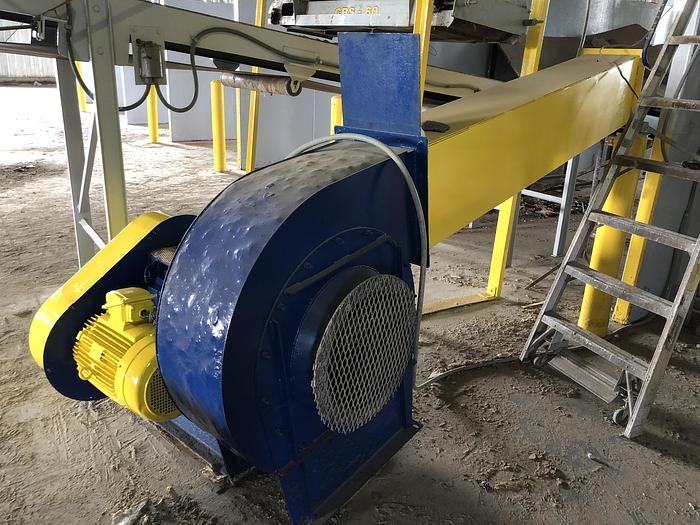

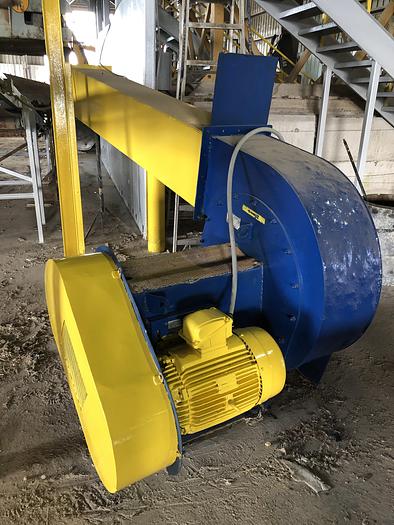

BloApCo 28" Fan - 20HP

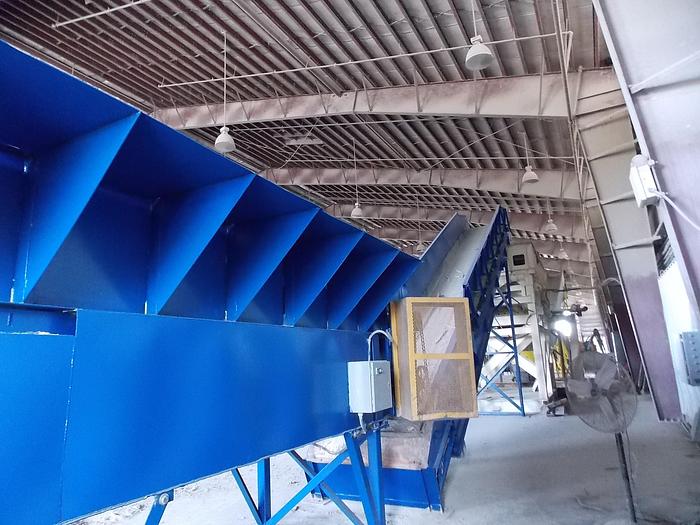

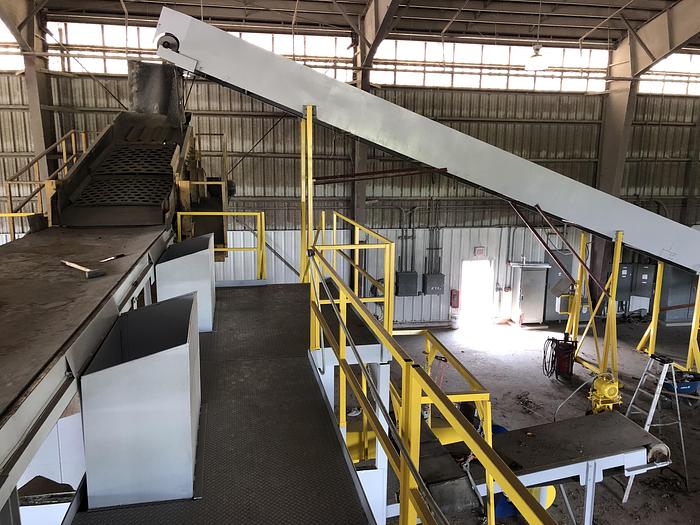

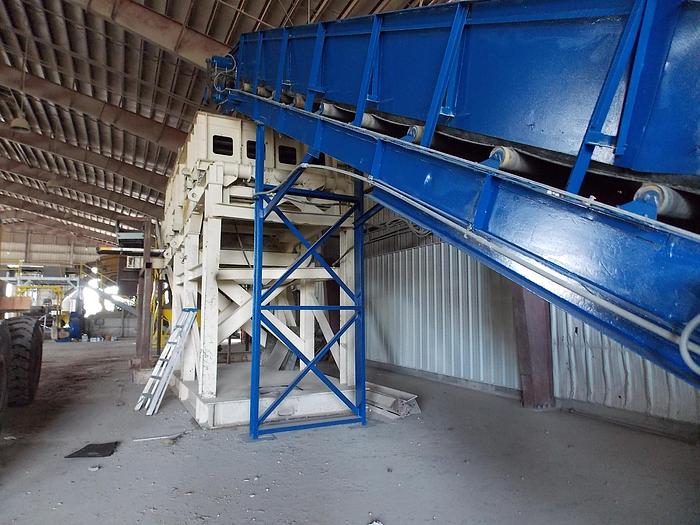

2005 Tuffman 70' Conveyor

- 70' long, 42" wide

- 24'-9" discharge height

- 8' Hopper

- 10HP 480v 3-phase electric motor

- Yaskawa V1000 variable frequency drive

- Rheostatic speed controls with Start/Stop

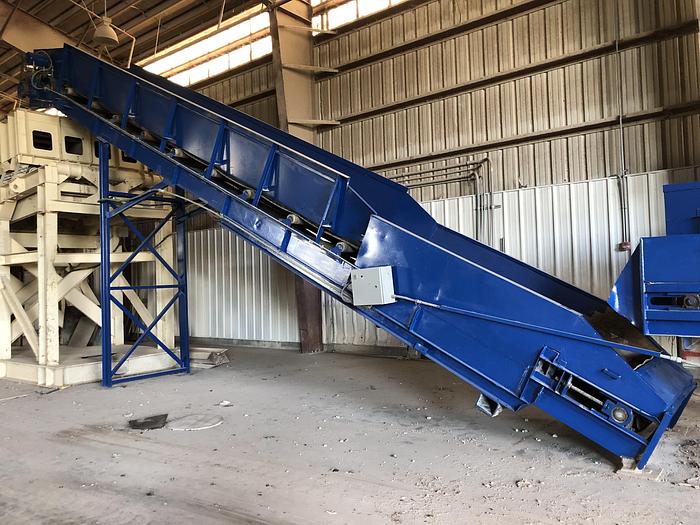

42' Incline Conveyor with Cleats

- 42' long, 65" wide

- 19' discharge height

- 1-1/2" aluminum cleats every 48"

- 2" high side rails - 7-1/2HP 230/460v 3-phase electric motor

- Yaskawa V1000 variable frequency drive

- Rheostatic speed controls with Start/Stop


18' Incline Conveyor

- 18' long 30" wide frame

- 1/2HP electric motor

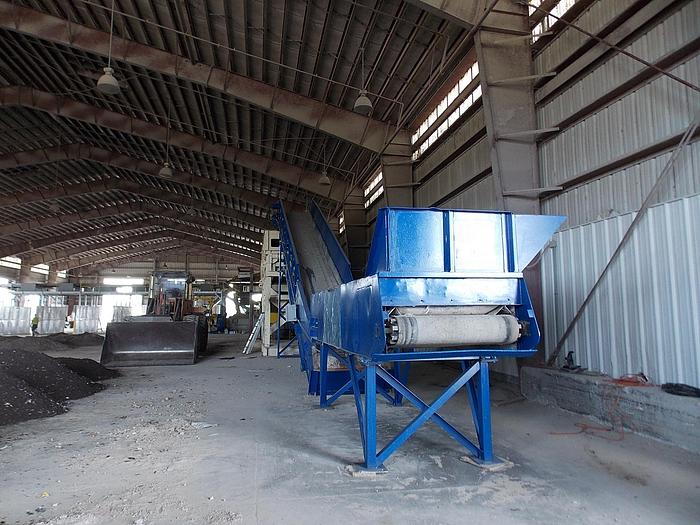

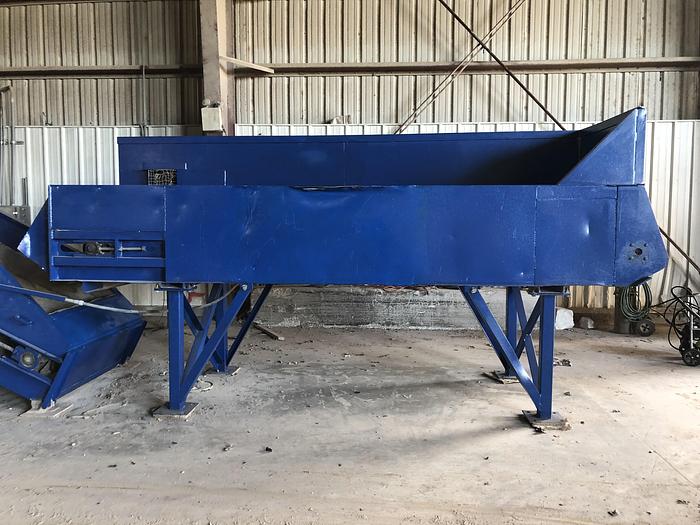

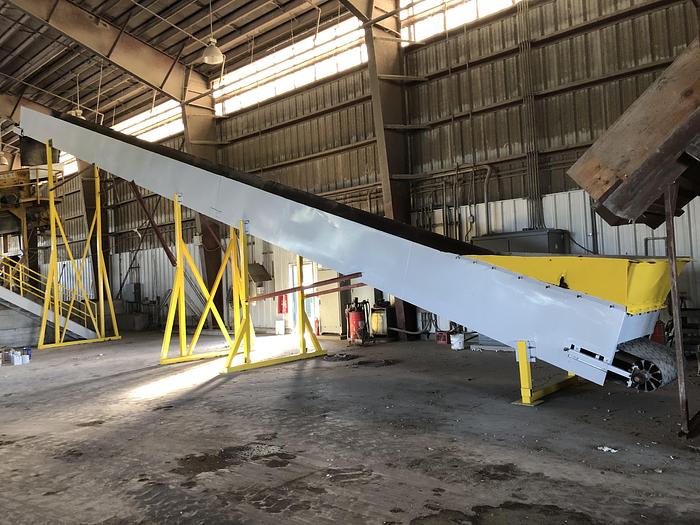

15' Feed Conveyor/Hopper

- 50" belt

- 5HP motor

- Yaskawa V1000 variable frequency drive

- Rheostatic speed controls with Start/Stop

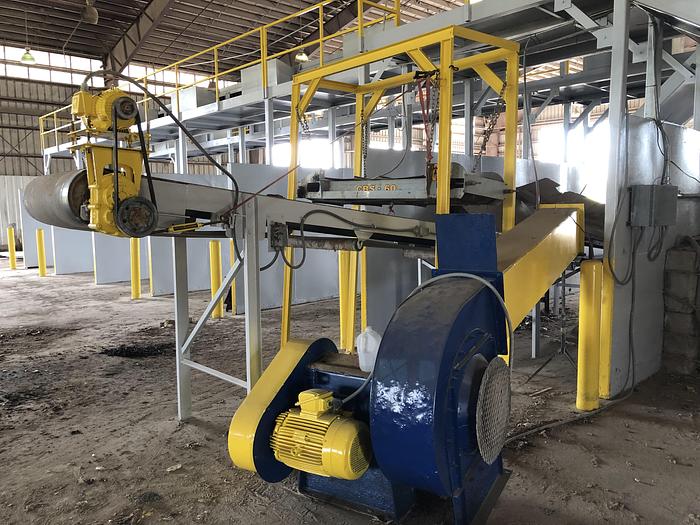

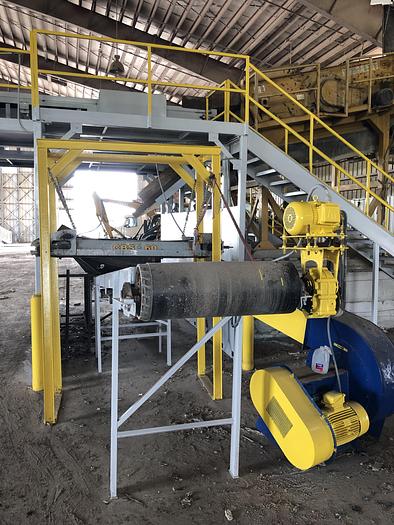

Tuffman CBS 60 Cross-Belt Magnet


Tuffman CBS 30 Cross-Belt Magnet


GM

Specifications

Stock NumberBH182111-1

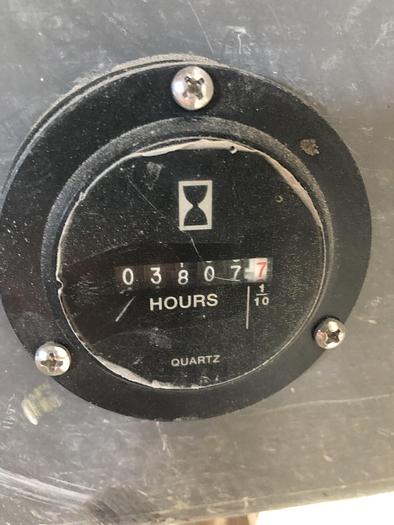

Hours 3807
