NEW GCS GCB
NEW GCS GCB
Contact us for price
Description

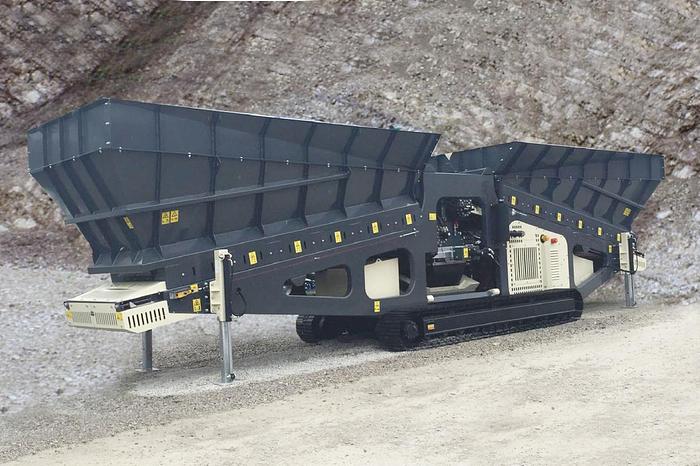

The GCB (Golf Course Blender) has been developed to meet the many applications where blending material is essential. It can used in application where high volumes are required and is capable of producing up to 1000 TPH of blended material. The unit is equipped with a mixing chamber with a rotating mixer shaft to thoroughly blend mulch, topsoil, sand, and more for lawn development, golf courses, and similar applications.
FEATURES:
- 15yd and 13yd feed hoppers
- Each hopper has a 40" feeder belt
- 48" x 30' discharge conveyor (15'-6" discharge height)
- Variable speed feeder belts
- 75kw power unit
- Hydraulic folding conveyor
- Pull cord emergency stops
- 172 gallon hydraulic tank
- 118 gallon diesel tank
- Umbilical remote control
OPTIONS:
- Wireless remote control
- Hydraulic tipping grizzly
HPR0000Z249T9H
Specifications
| Stock Number | GCS170506-1 |
| Hours | 0.0 |
| Engine | Tier 4 Cat diesel |
| Length | 39'-5" |
| Width | 34'-10" (11'-4" for transport) |
| Height | 15'-7" (12'-6" for transport) |
| Weight | 42,770 lbs |
